Auspicious T2 - Push-Button

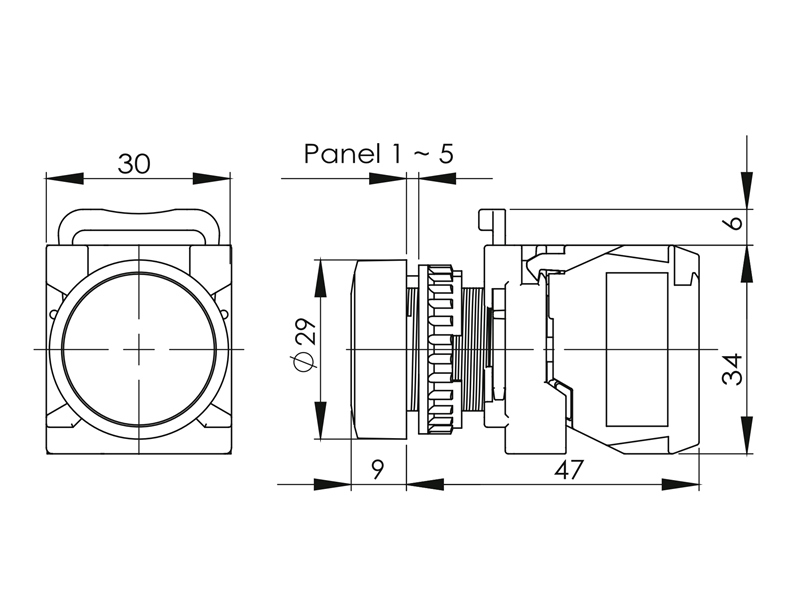

    Panel switch for mounting in 22mm holes. Available as On/Off and Push-On. A complete solution consists of these seperate parts:

    • Switch
    • Coupling
    • Contact-block (1-2 pcs.)

    There are also these accessories for the buttons:

    • Silicone rubber protection, to avoid dirt in the switch
    • Protection cover, to prevent unintended activation
    • Shield, to prevent unintended activation

    Notice the design-difference on the switch, where the push-on is completely flush, and the on/off has a ring on the surface.

    Coupling

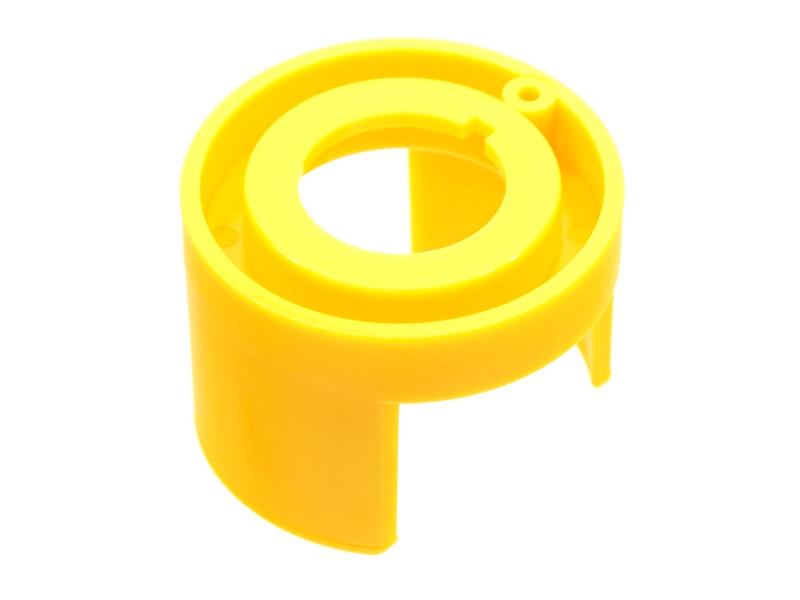

    The coupling is simple pushed on to the bottom of the switch. The coupling is easy to take of again, by pushing the yellow parts, and pulling the coupling from the switch. This makes it easy to connect and replace.

    Contact-blocks

    There is space for 2 contact blocks on a coupling. These are simply places in the coupling where they fasten. They are easy to remove again. The contact-blocks are activated when the switch is pushed down.

    • NO contact block (green) connects the two screw-terminals when activated
    • NC contact block (red) diconnects the two screw-terminals when activated



    Panel switch for mounting in 22mm holes. Available as On/Off and Push-On. Easy to mount with NO or NC terminals.
