Auspicious T2 - Key switch

    Contact for mounting in Ø22mm hole, that is activated with the included keys. Available with 2 and 3 positions. A complete key-switch consists of these seperate parts:

    • Switch
    • Coupling
    • Contact blocks (1-2 pcs)

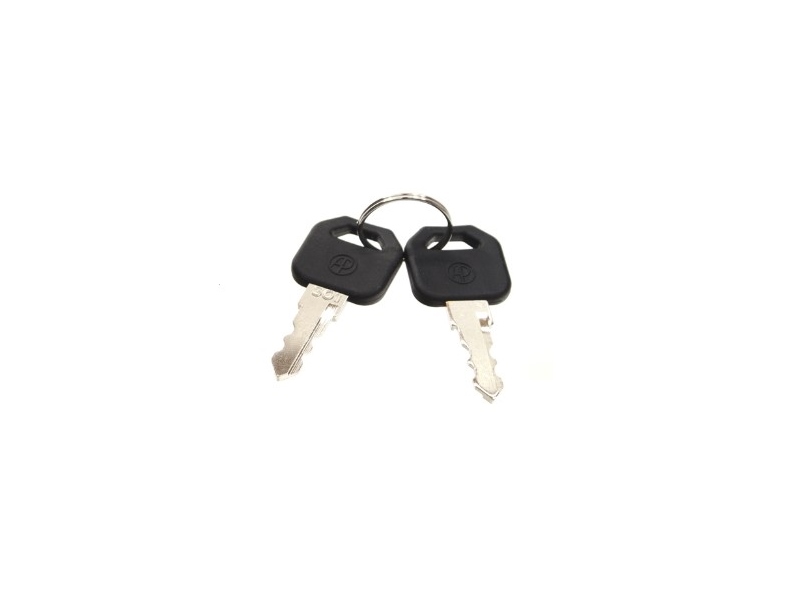

    2 keys are included. Replacment keys or extra keys are available on request.

    The 2 position switch swaps between activating the mounted contact blocks. The 3 posittion does the same, but the middle position does not activate any contact blocks. You can extract the key in all positions.

    Coupling

    The coupling is simple pushed on to the bottom of the switch. The coupling is easy to take of again, by pushing the yellow parts, and pulling the coupling from the switch. This makes it easy to connect and replace.

    Contact-blocks

    There is space for 2 contact blocks on a coupling. These are simply places in the coupling where they fasten. They are easy to remove again. The contact-blocks are activated when the switch is pushed down.

    • NO contact block (green) connects the two screw-terminals when activated
    • NC contact block (red) diconnects the two screw-terminals when activated




    Contact for mounting in Ø22mm hole, that is activated with the included keys. Available with 2 and 3 positions.
