Electric material Switches and indicators Switches for 12V

Pressure switch in steel Push On-12V

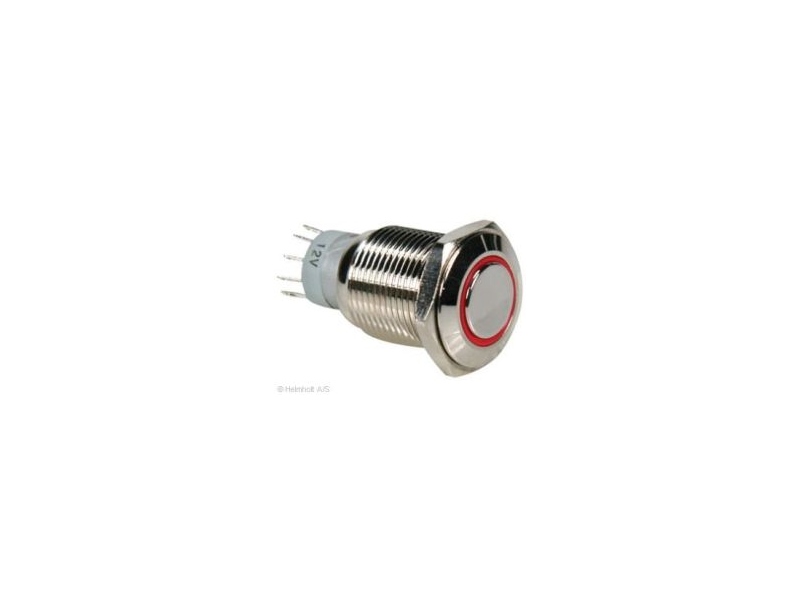

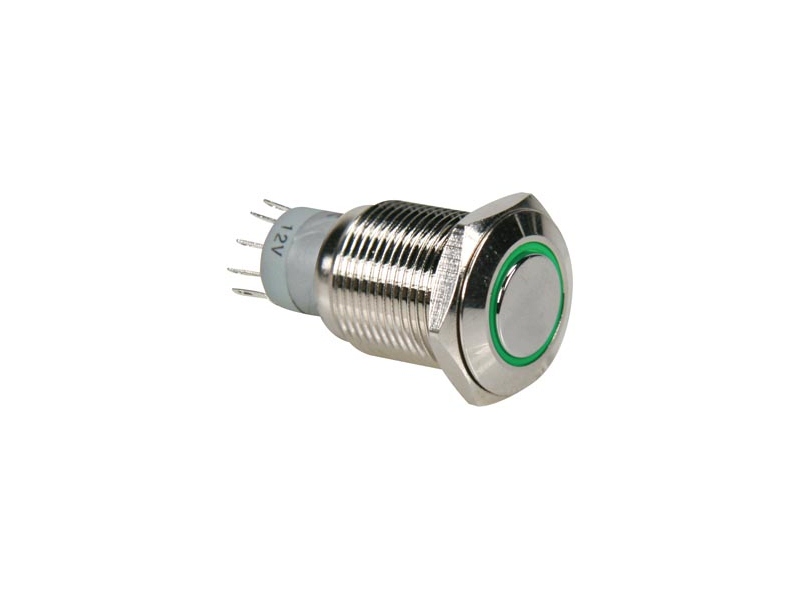

    Pressure switch with LED 12V LED light for mounting hole Ø16mm.

    Technical details:

    • Contact type: 1-pole OFF-(ON)
    • Operational temperature:-20 ° c ~ + 70 ° c
    • Humidity: 45 ~ 85% RH
    • Insulation resistance: > 1000Mohm
    • Contact resistance: < 50Mohm
    • Contact Material: Silver Alloy
    • Mechanical life: > 1 million. Press
    • Electrical lifetime: 50,000 press
    • Lifetime: > 40 000 brændtimer
    • Dielectric strength:
      • Between terminals on same pole: 1000VAC
      • Between terminals at different pol: 2000VAC
      • Between terminal and joint terminal: 1500VAC
      • House material: Nickel plated brass
      • Density: IP40/IP65 (splash proof)
      • Max voltage:
        • 24VDC/1A
        • 230VAC/0, 5A

    Pressure switch with LED 12V LED light for mounting hole Ø16mm.

    Vis fuld beskrivelse

    Product not for sale

    Sorry, but we are currently not selling this product. Contact us if you need more information.

    Datasheet

    Download datasheet
