Electric material Connection Lugs and crimp terminals

100 stk. cablelug, Splitter - 6,3 x 0.8

    Box with 100 pcs. cable lug with both male and female part, that can be used to split signals and power. This can be an advantage when eg. connecting to a battery, where you require multiple connections.

    The cable lug is not fully insulated. The size is 6,3 x 0.8mm.

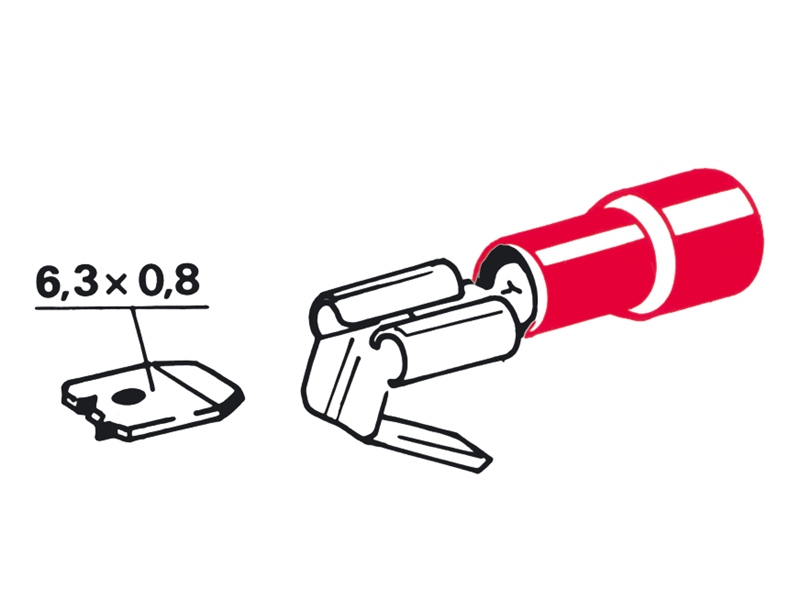

    Red lugs:

    • Wire 0,5 - 1,5mm²
    • Max voltage: 220V
    • Max current: 19A

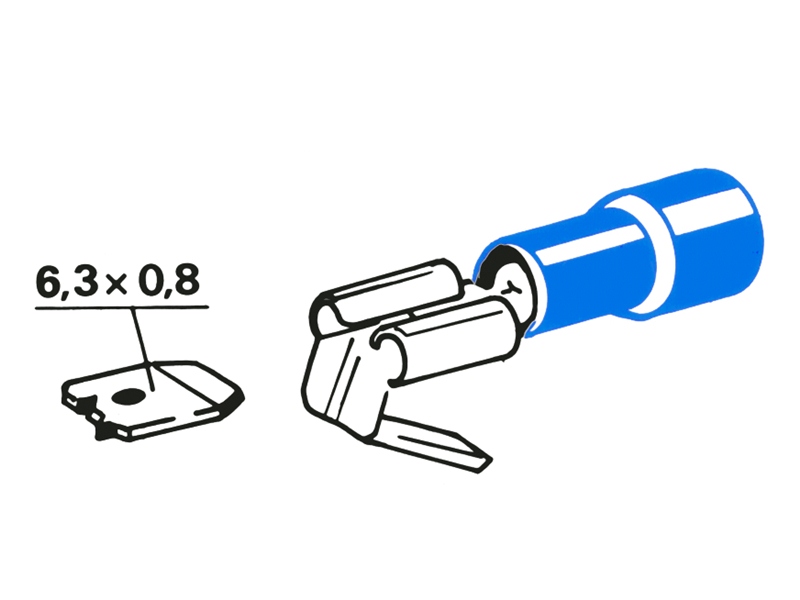

    Blue lugs:

    • Wire 1,5 - 2,5mm²
    • Max voltage: 220V
    • Max current: 20A

    Yellow lugs:

    • Wire 4,0 - 6,0mm²
    • Max voltage: 220V
    • Max current: 40A

    Cable lug with both male and female part, that can be used to split signals and power.
