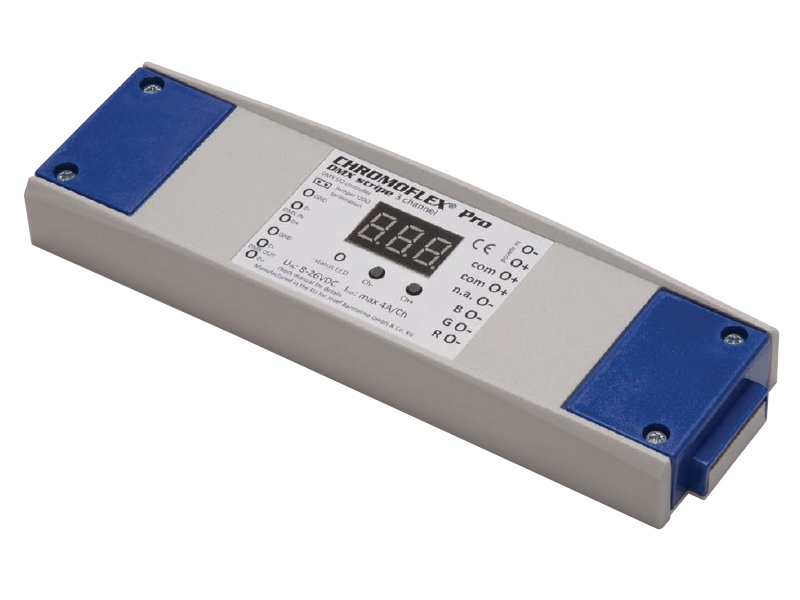

RGB + White controller DMX512, DALI and KNX protocols. The controllers can also be used as 4-channel dimmers.
Typically used for larger installations, where you want to control RGB + White light central in a network.
Facts for DMX
Ambient temp.: | 0-50°C, recommended < 30°C |
Channels: | 4 |
Max current: | 4A per channel |
Max power: | 384W |
Max temperature: | 60°C |
Voltage: | 10-24Vdc |
Facts for DALI
Ambient temp.: | 0-50°C |
Channels: | 4 |
Dimming frequency: | 130Hz |
Max current: | 2.2A per channel |
Max power: | 106W at 12V |
Max temperature: | 80°C |
Voltage: | 10-48VDC |
RGB + White Controller DMX512, DALI and KNX protocols
