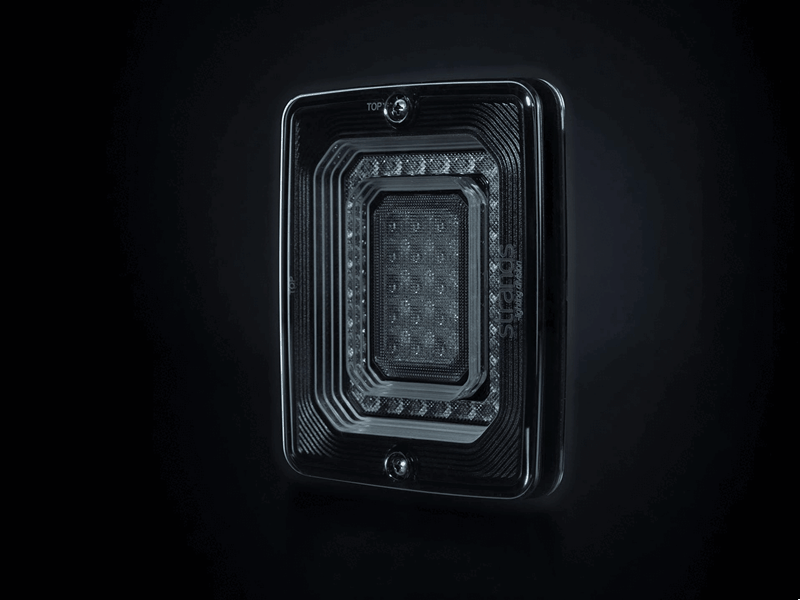

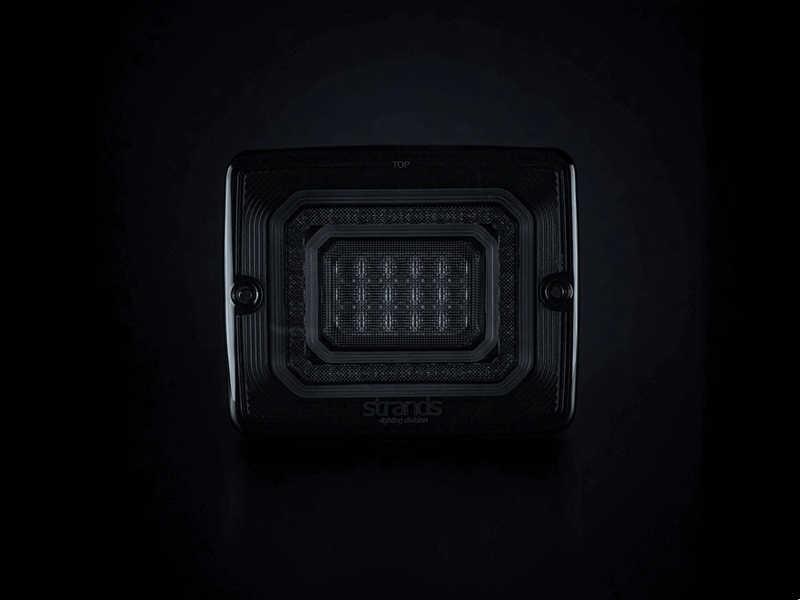

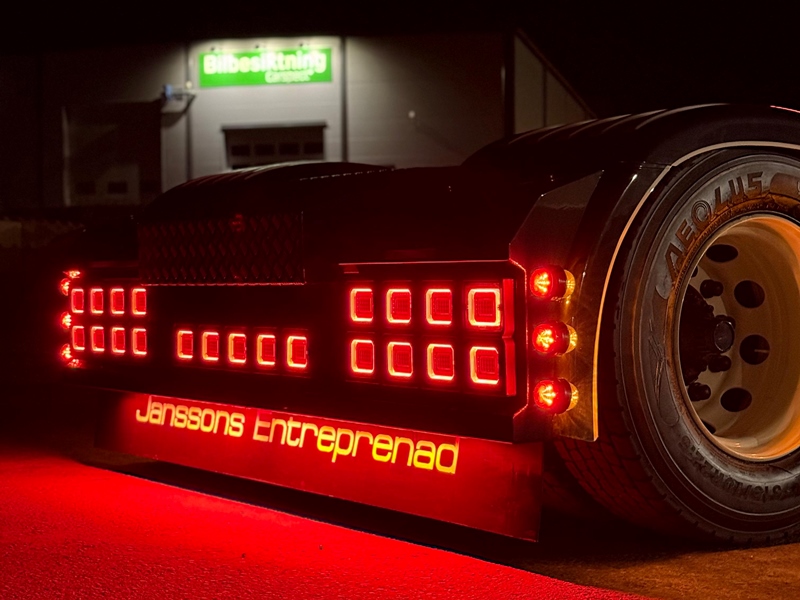

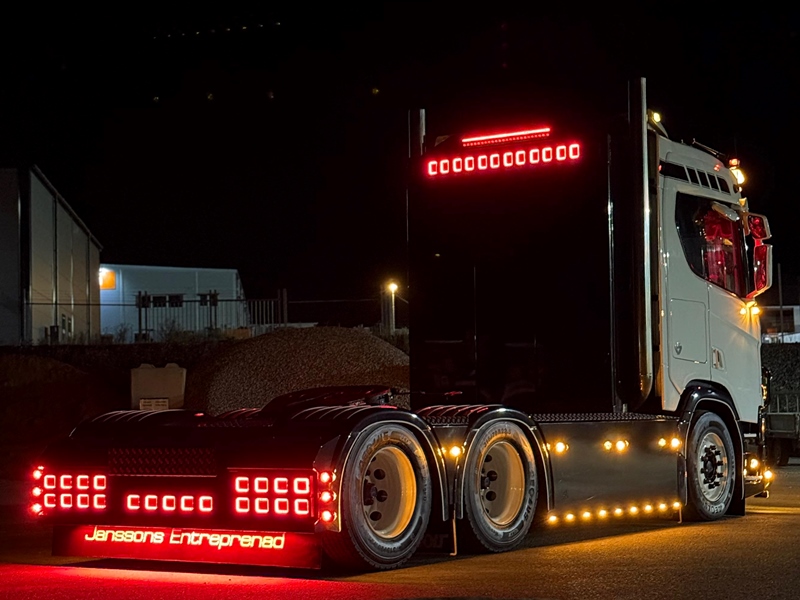

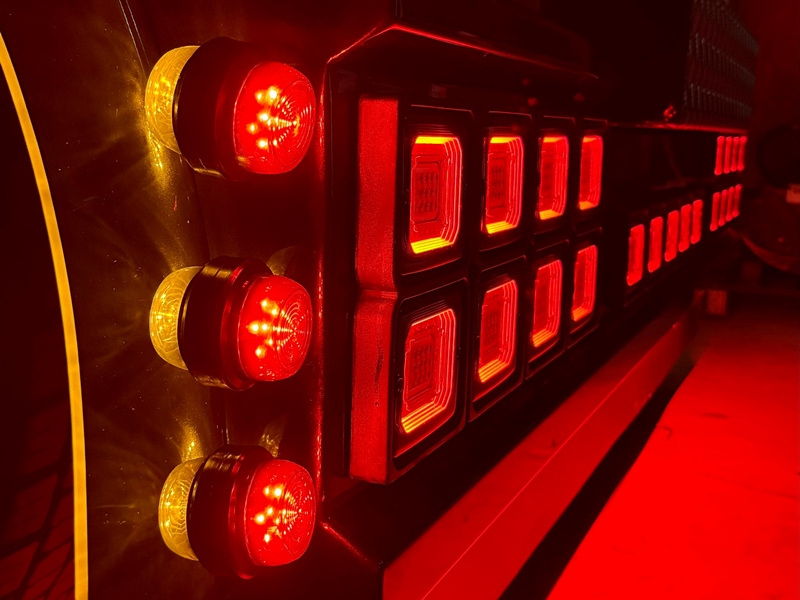

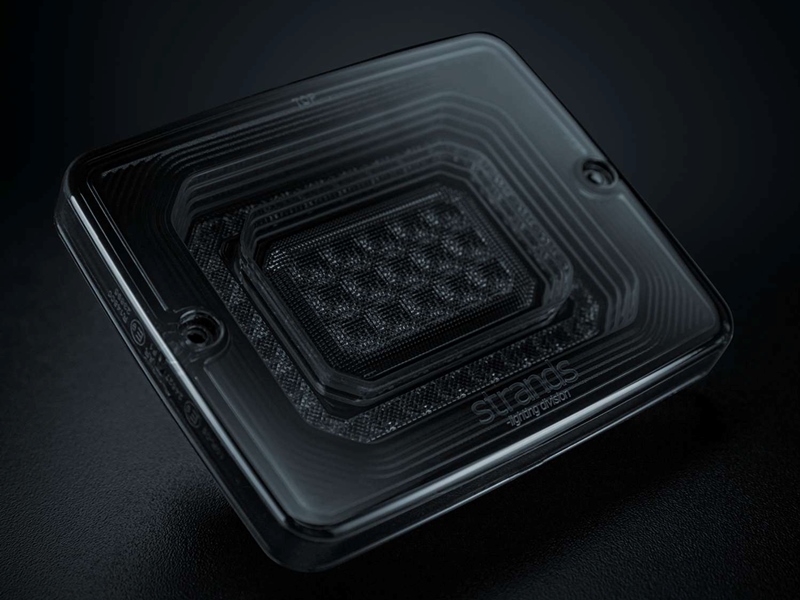

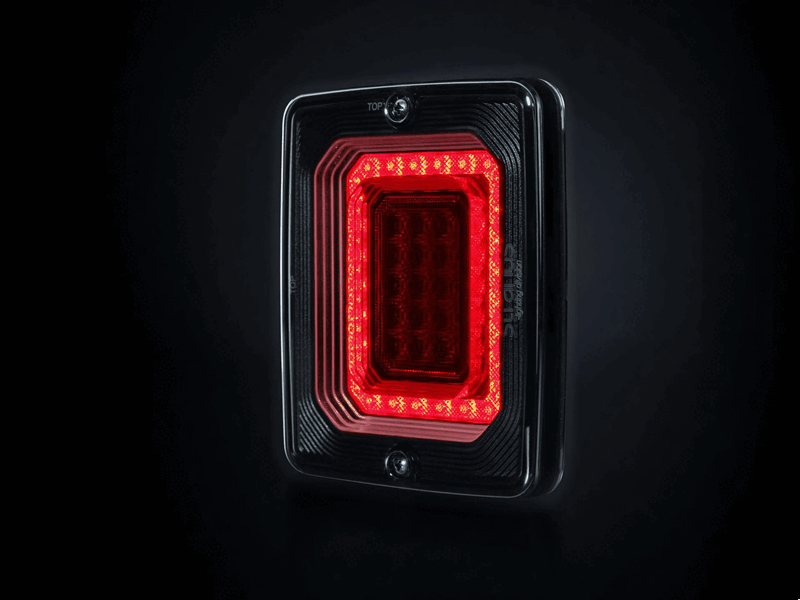

FOR9T Illusion is a new series of taillights with the unique FOR9T style, elevating them to a whole new level. The iconic FOR9T lines combined with the elegant dark lens provide a powerful and modern light expression that stands out on the road and fits perfectly on trucks and trailers.
The series is available in four variants, so you can find exactly the look that suits your vehicle:
- Tail / brake / and indicator light
- Reversing / and fog light
- Tail / and brake light

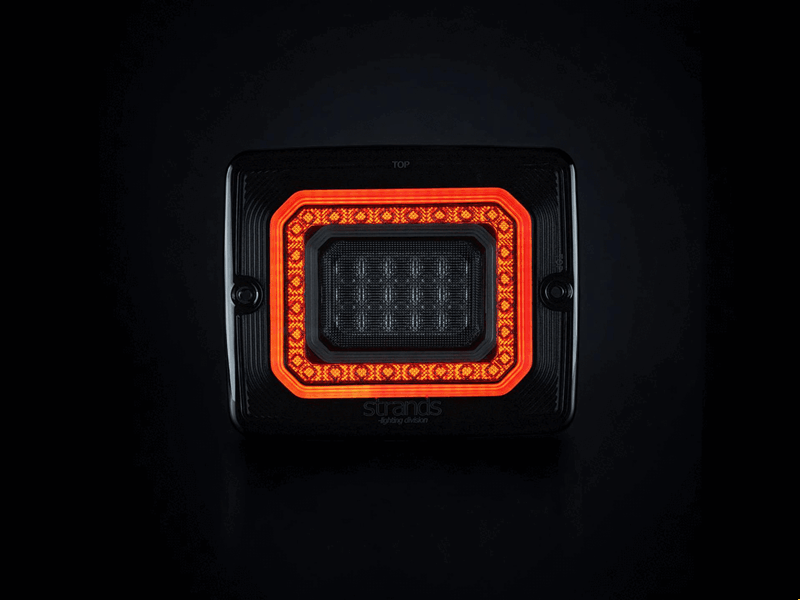

- Indicator light
Screws, nuts, and nylon washers are included in the package.

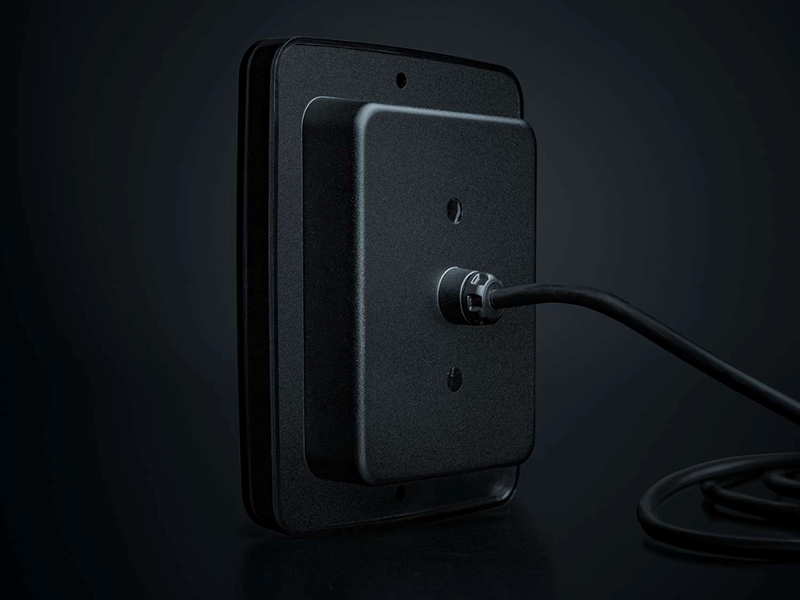

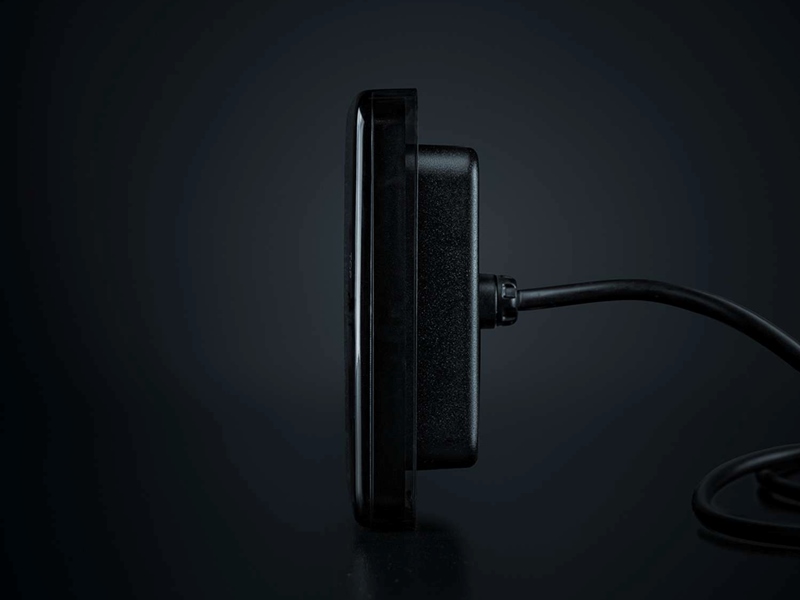

Illusion is compatible with both 12V and 24V systems. The installation is made easy with a 250cm long cable:
3-functions
- Black: Ground / -
- Red: Brake light / +
- Yellow: Indicator light / +
- Green: Tail light / +
Reversing / Fog lights
- Black: Ground / -
- Red: Fog light / +
- Yellow: Reversing light / +
Tail / Brake lights
- Black: Ground / -
- Red: Brake light / +
- Yellow: Tail light / +
Indicator lights
- Black: Ground / -
- Red: Indicator light / +
Illusion is made from durable materials ensuring long life, and comes with a 3-year functional warranty. Illusion is E-approved R148 for both horizontal and vertical mounting. They are also protected against radio interference (ECE R10).
Ref.: 800655, 800656, 800657, 800658
Facts for Tail- / Stop- / Indicator light
Consumption: | 15,5W |
Current: | Stop: 5W - Tail: 4,5W - Indicator: 6W |
Voltage: | 10-40V |
Wirelength: | 250cm |
Work temperature: | -30°C to +65°C |
Facts for Tail- / Stop light
Consumption: | 8,5W |
Current: | Stop: 4,5W - Tail: 4W |
Voltage: | 10-40V |
Wirelength: | 250cm |
Work temperature: | -30°C to +65°C |
Facts for Indicator light
Consumption: | 6W |
Voltage: | 10-40V |
Wirelength: | 250cm |
Work temperature: | -30°C to +65°C |
Facts for Reverse- / Fog light
Consumption: | 11W |
Current: | Fog light: 6W - Tail: 5W |
Voltage: | 10-40V |
Wirelength: | 250cm |
Work temperature: | -30°C to +65°C |
E-approved Strands FOR9T Illusion tail lights with an exclusive dark design. Available in 4 different variants.
