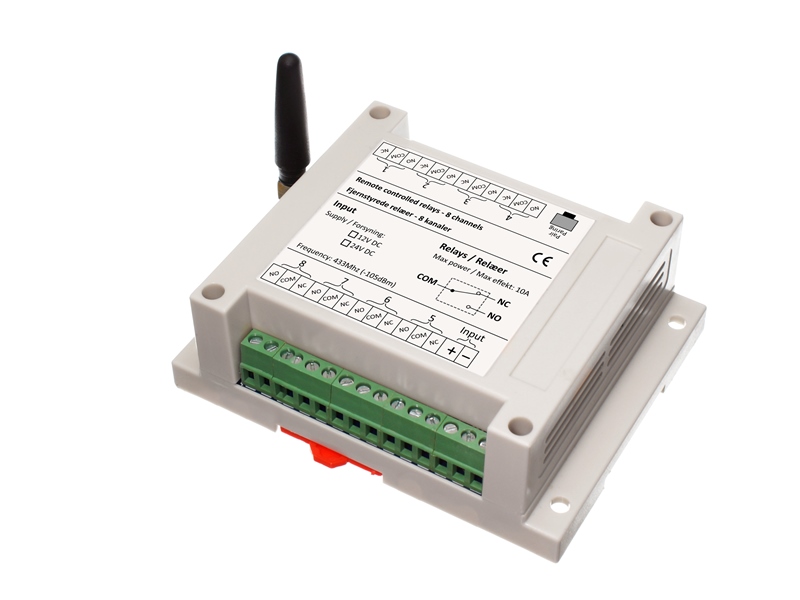

Remote controlled contoller, with 8 relays, that can be controlled individually with the remote. It has several advanced functions, that makes it usable for many purposes.
Remotes sold seperatly
The setup is done from the remote, when this is paired with the controller. The pairing is started by pushing the "pair" button on the controllere, where after you push one of the buttons on the remote. The number you push on the remote is equivalent to the wanted setup. You can see a list of the setups below.
Connecting to power supply

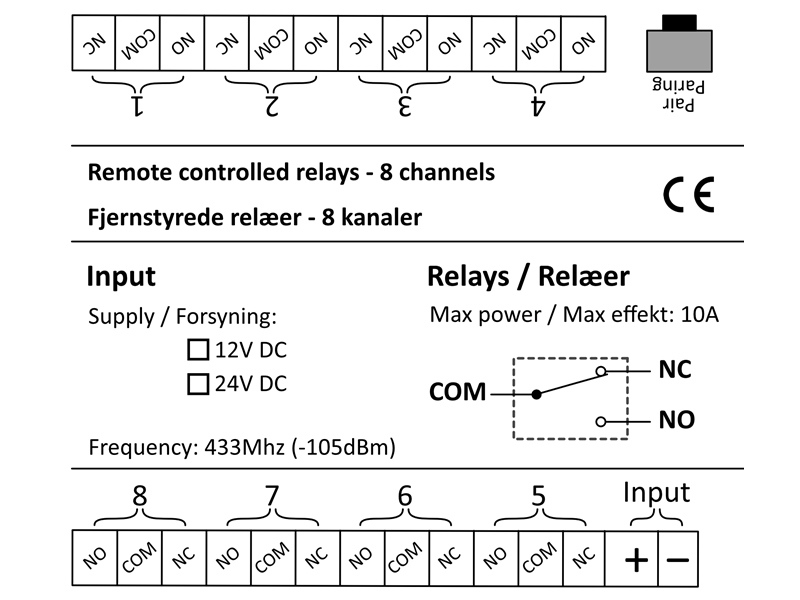

The relay is supplied with 12V or 24V, while the relays themselves can switch on and off 230V circuits as well. If you want to use it for 230V you need to use a 230V to 12V or 24V transformer, eg. a 15W. You connect the supply to the screw terminals marked as "Input" on the diagram.
Connecting to the relays
There is no connection between the controller and the relays, you will have to connect power to each individual relay yourself. Typically you will connect power co COM, and connect the device to be powered to NO (normally open). When the relay is activated, it connects COM and NO, so that the connected device is powered on. NC is normally closed, so it is connected to COM until the relay is activated.
Functions
| Knap |
Function |
| 1: |
All momentary (horn) |
| 2: |
Change between one active relay |
| 3: |
Individual On/off (push for on, push for off) |
| 4: |
Relæ 1-6: Momentary (horn)
Relæ 7-12: Individual On/off (push for on, push for off) |
| 5: |
Relæ 1-6: Momentary (horn)
Relæ 7-12: Change between one active relay |
| 6: |
Relæ 1-6: Change between one active relay
Relæ 7-12: Individual On/off (push for on, push for off) |
| 7: |
Relæ 1-4: Momentary (horn)
Relæ 5-8: Change between one active relay
Relæ 9-12: Individual On/off (push for on, push for off) |
| 8: |
Relæ 1-6: Individual On/off (push for on, push for off)
Relæ 7-12: Momentary (horn) |
There is a buzzer built in, that buzzes when a relay is activated. We can uninstall this on request.
