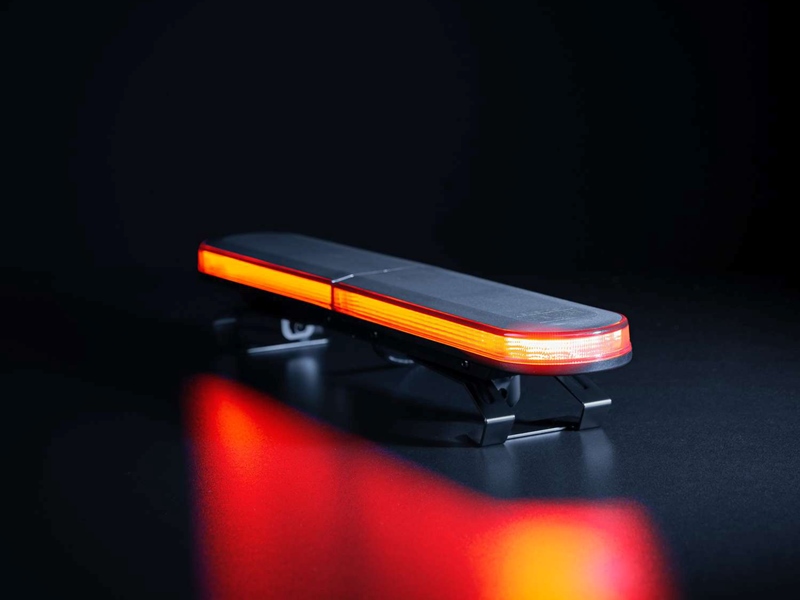

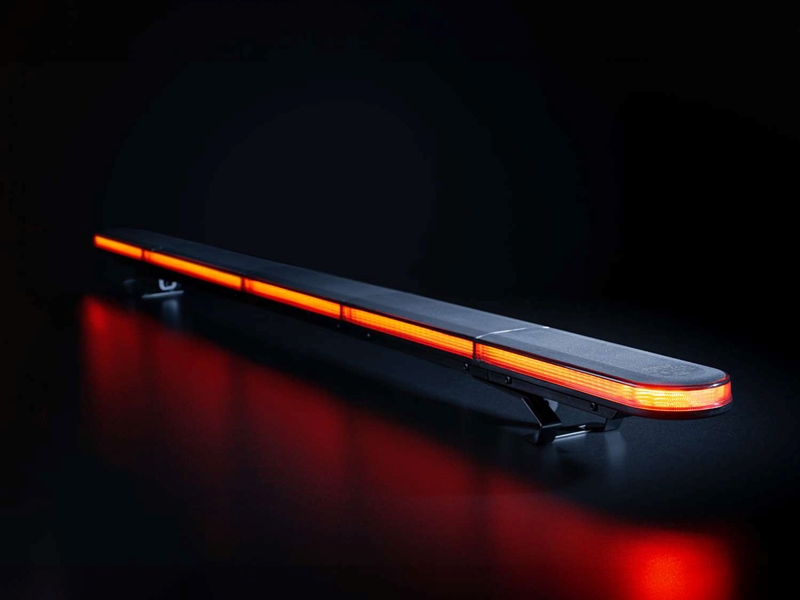

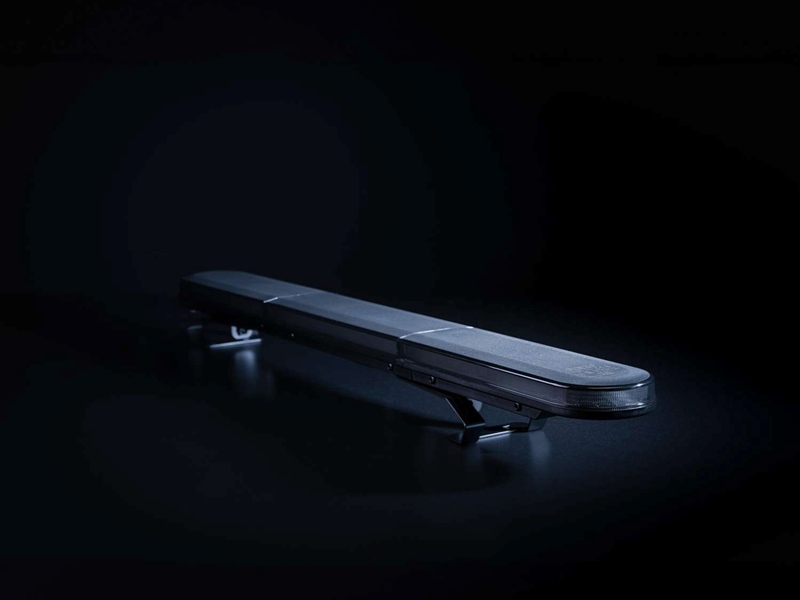

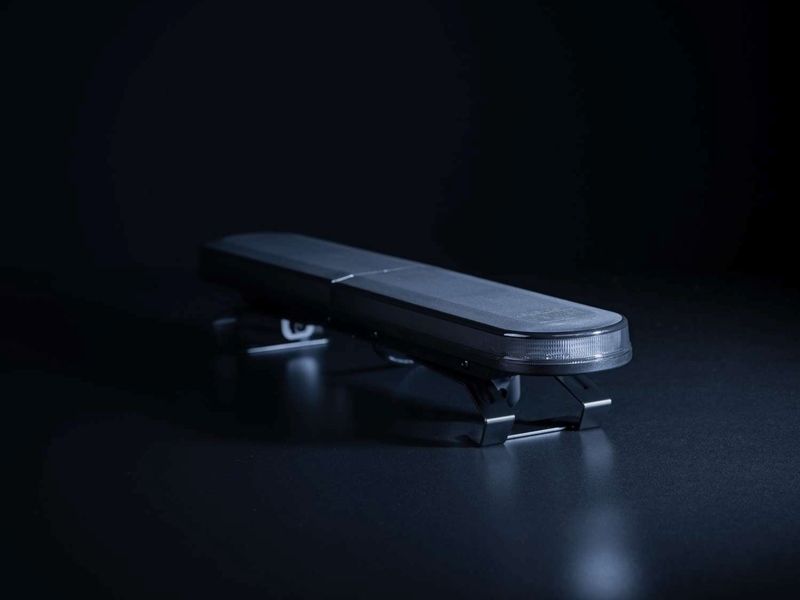

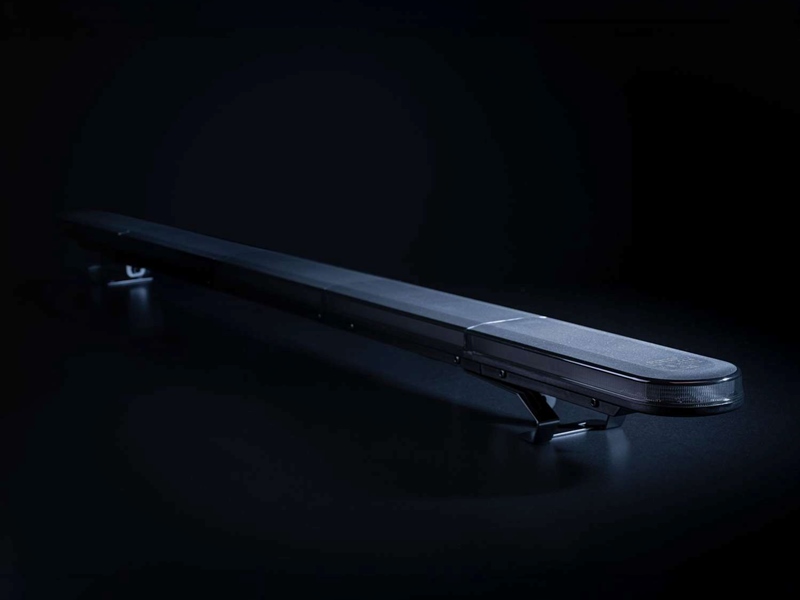

Big Energy strobe light bar delivers maximum visibility in a sleek, dark design that fits perfectly on all types of vehicles. With powerful light output, 27 different flash patterns, and a separate cruise mode, it is an ideal choice for both work and traffic situations where safety is critical.
It is approved according to ECE R10 and R65, features an IP67 rating, and is built from durable materials to ensure reliable performance in all weather conditions.

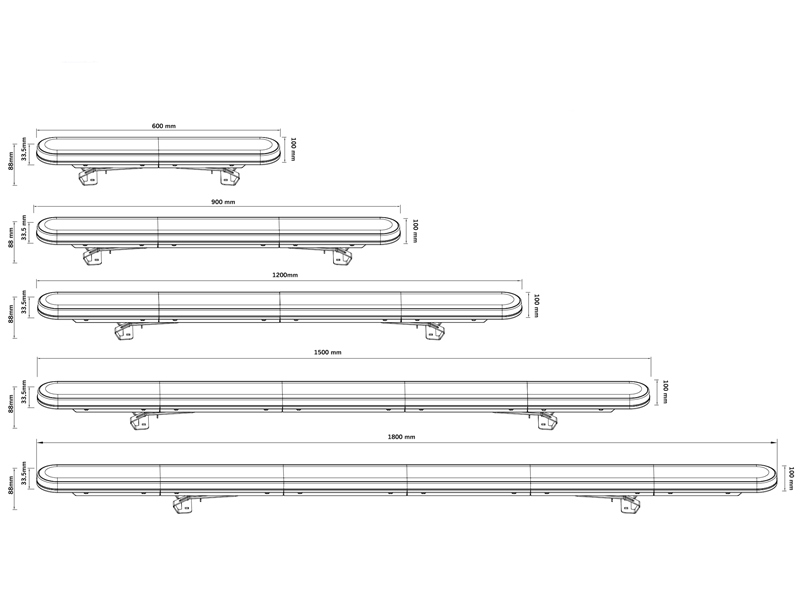

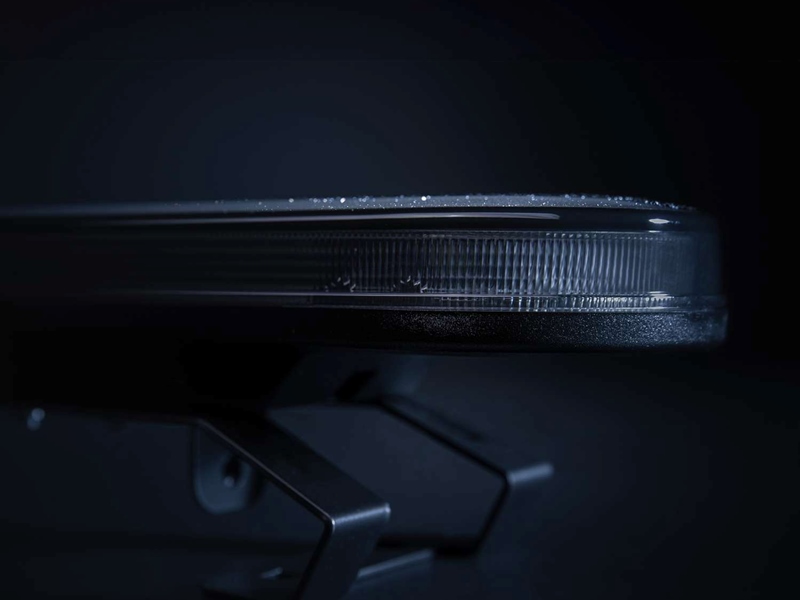

The strobe light bar is available in five lengths (600–1800 mm) and comes with adjustable mounting feet, making it easy to install on trucks, vans, tractors, and special vehicles.

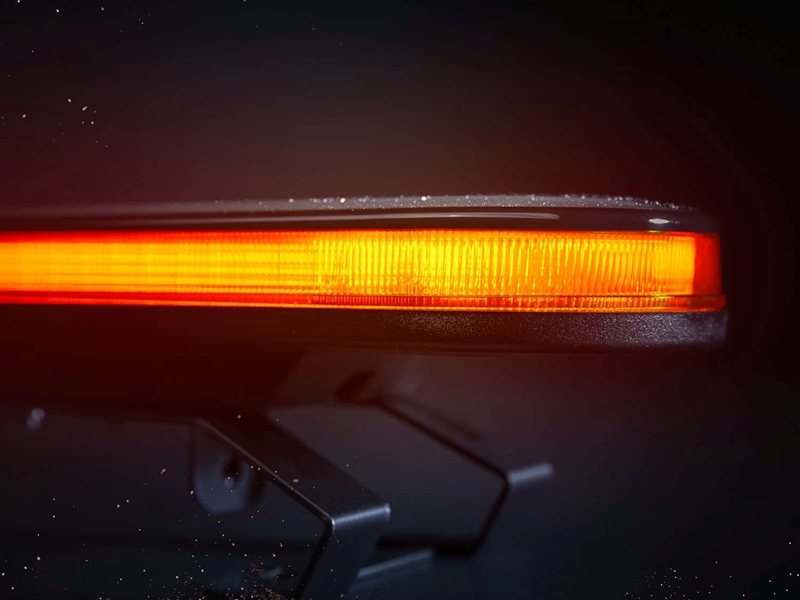

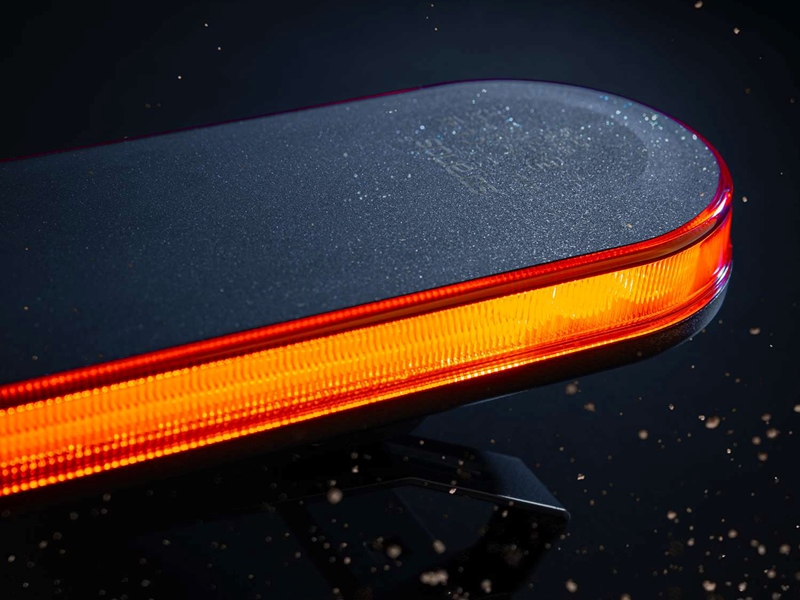

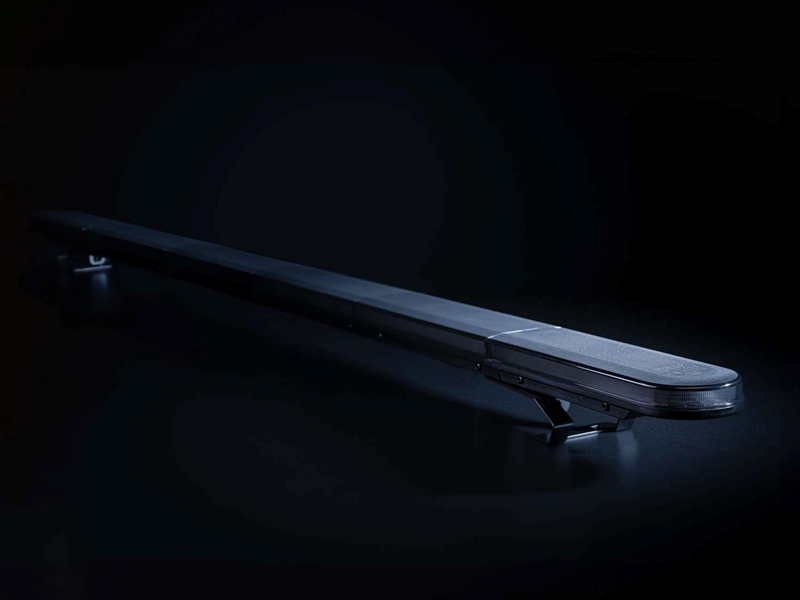

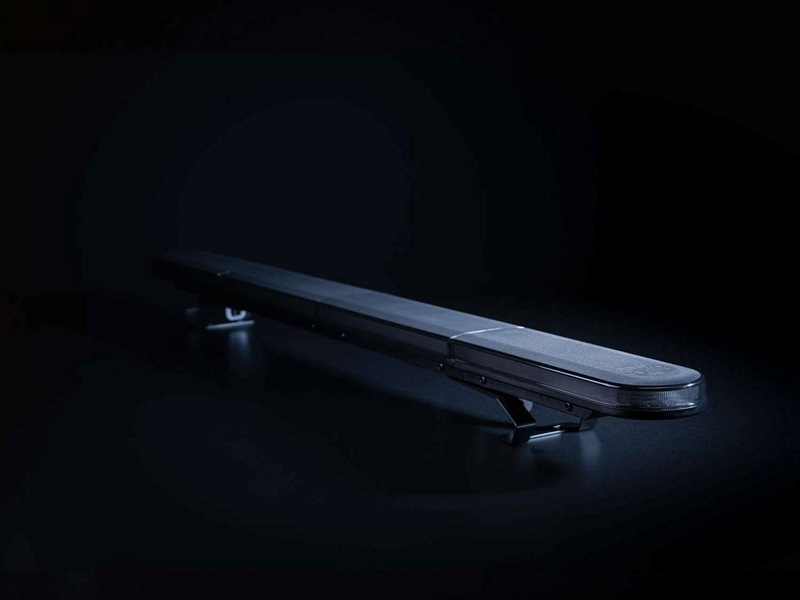

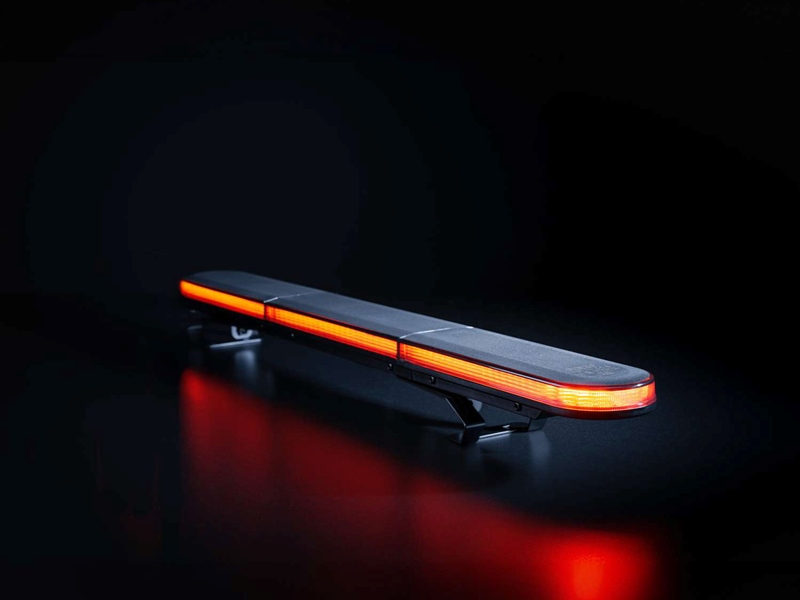

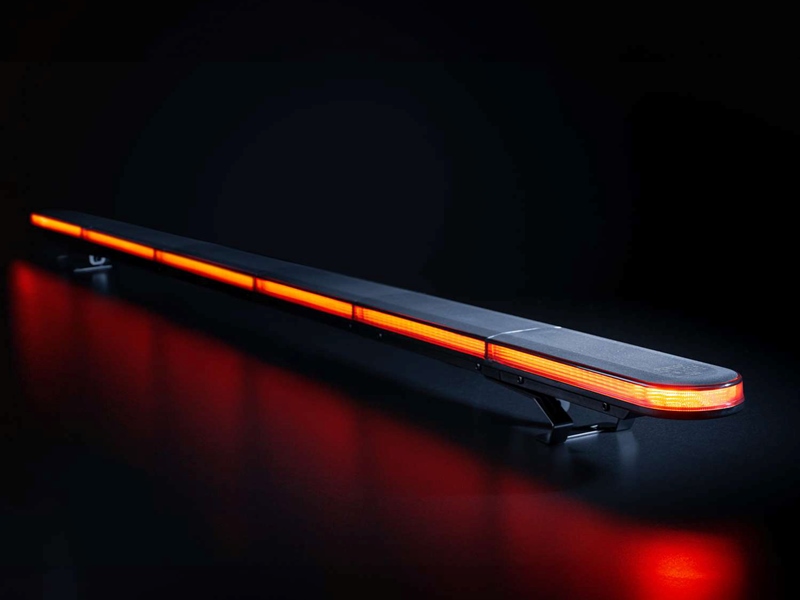

The elegant dark design combined with a powerful amber light delivers a professional look and high visibility.
Big Energy is supplied with a 3-year functional warranty from Strands, making it a safe choice when only the best will do.
Reference: Strands 850160, 850161, 850162, 850163, 850164
Connection
There is a 2,5m cable attached to all models:
- Red = Plus +
- Black = Minus -
- Yellow = Flash pattern to plus +
- White = Synchronization
- Blue = Cruise-mode til plus +
- Brown =
- Green =
Facts for 120cm - 204W
| Cable length: | 250cm |
| Consumption: | 86W |
| Consumption, teoretical: | 204W |
| Patterns: | 27 |
| Voltage: | 10-32V |
| Work temperature: | – 30°C to +60°C |
Facts for 90cm - 156W
| Cable length: | 250cm |
| Consumption: | 77W |
| Consumption, teoretical: | 156W |
| Patterns: | 27 |
| Voltage: | 10-32V |
| Work temperature: | – 30°C to +60°C |
Facts for 60cm - 108W
| Cable length: | 250cm |
| Consumption: | 65W |
| Consumption, teoretical: | 108W |
| Patterns: | 27 |
| Voltage: | 10-32V |
| Work temperature: | – 30°C to +60°C |
Facts for 150cm - 252W
| Cable length: | 250cm |
| Consumption: | 105W |
| Consumption, teoretical: | 252W |
| Patterns: | 27 |
| Voltage: | 10-32V |
| Work temperature: | – 30°C to +60°C |
Facts for 180cm - 300W
| Cable length: | 250cm |
| Consumption: | 115W |
| Consumption, teoretical: | 300W |
| Patterns: | 27 |
| Voltage: | 10-32V |
| Work temperature: | – 30°C to +60°C |
Strands Big Energy R65-approved light bar with 27 powerful flash patterns, available in multiple lengths.
