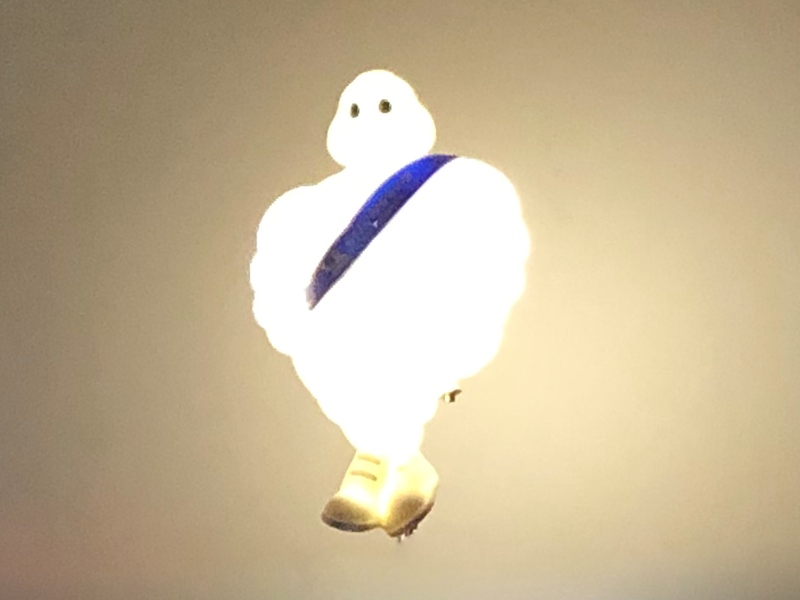

Powerful LED emitters for additional position light in the original big/large Michelin Man / Mascot / Bidendum on 42cm. Available in multiple colors, with and without strobe. The set is only available in 24V.
The emitters are available in multiple colors, with and without strobe light. They are sold as 2 emitters regardless of the type - 1 for each side.
Single color, Yellow/White/Warm white
There is 3 meter wire on each emitter, that can be connected to the regular positionlight. There is a plus and minus wire.

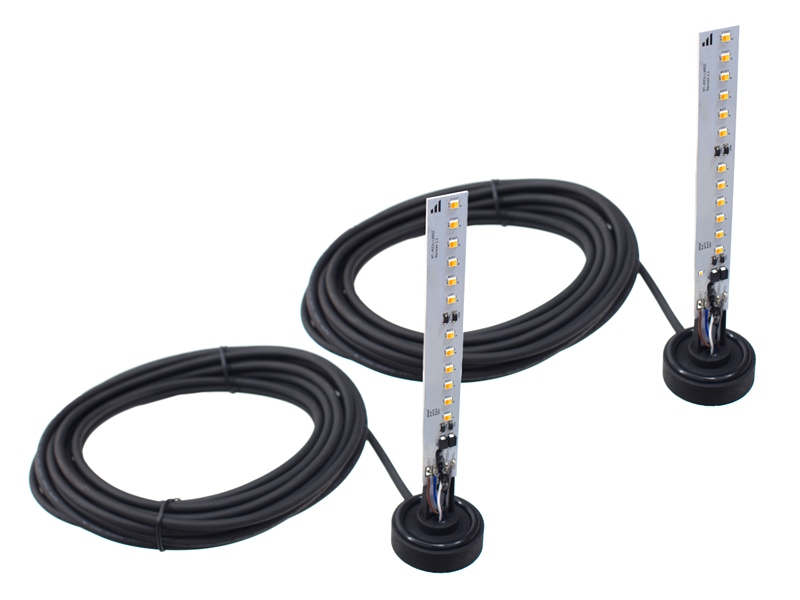

Dual color
There is 3 meter cable on each board. There is one minus and two plus-wires. You should never have both colors turned on, so you need to use a toggle switch to change between the colors.

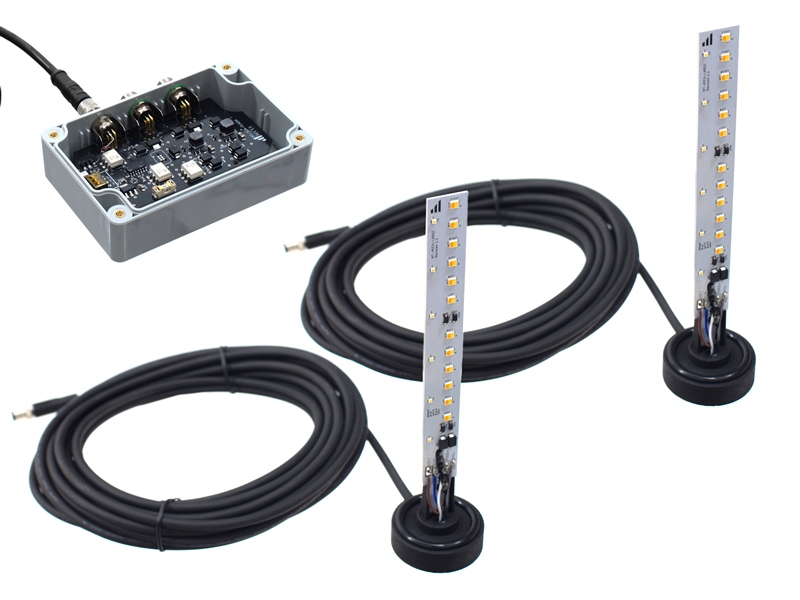

Dual color + flash
Standard strobecolor is yellow, but it can be customized to eg. blue or white for special purpose vehicles.
There is 6 meter cable on the emitter with M8 connectors, that can be connected to the included controller. The controller manages the two colors, and automatically turn them off when you enable the strobe light. The controller itself has 3 meter wire. The cable has 4 wires:
- Minus - Green cable
- Plus for white position light - White cable
- Plus for yellow position light - Yellow cable
- Plus for strobe light - Brown cable
Mounting
- Disassemble the bracket on the bottom of the man
- Drill a 20mm hole in the middle of the 3 bolts. See the drawing under pictures.
- Mount the big black sealing over the emitter
- Place the emitter in the hole you just drilled.
- The bracket is then placed over the end of the emitter.
- Use the supplied spacers and bolts to fasten the bracket.
Facts for 24V, Dual Color Amber/White
Facts for 24V, Dual Color Amber/White + Strobe
Facts for 24V, Warm white
Facts for 24V, Xenon white
Powerful LED emitters for additional position light for the 42cm Michelin man / mascot / bidendum. Available in different versions.
