Mechanics and materials T-track guide rails

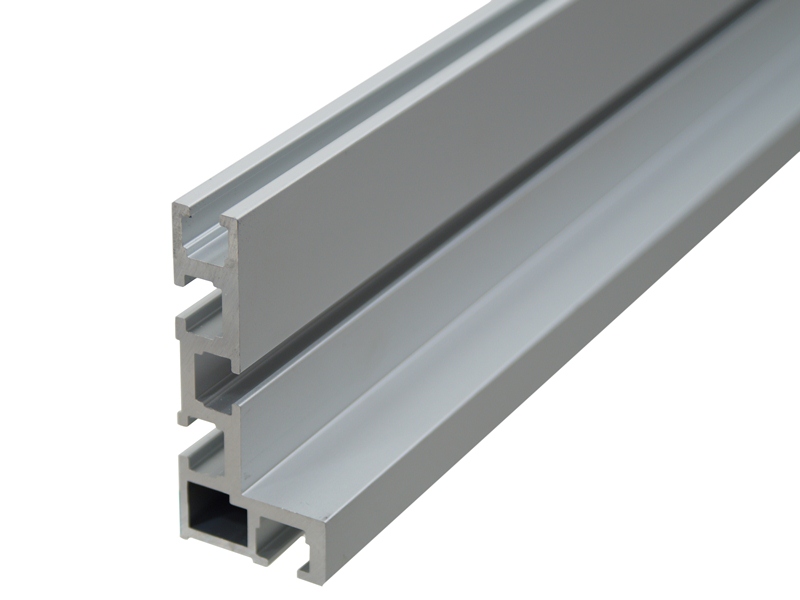

T-track guide-rail system - Fence profile - 100cm

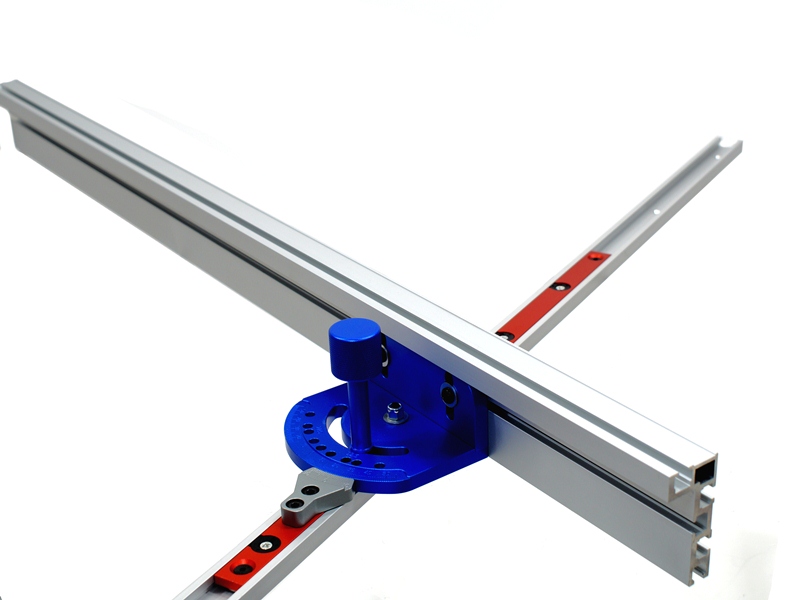

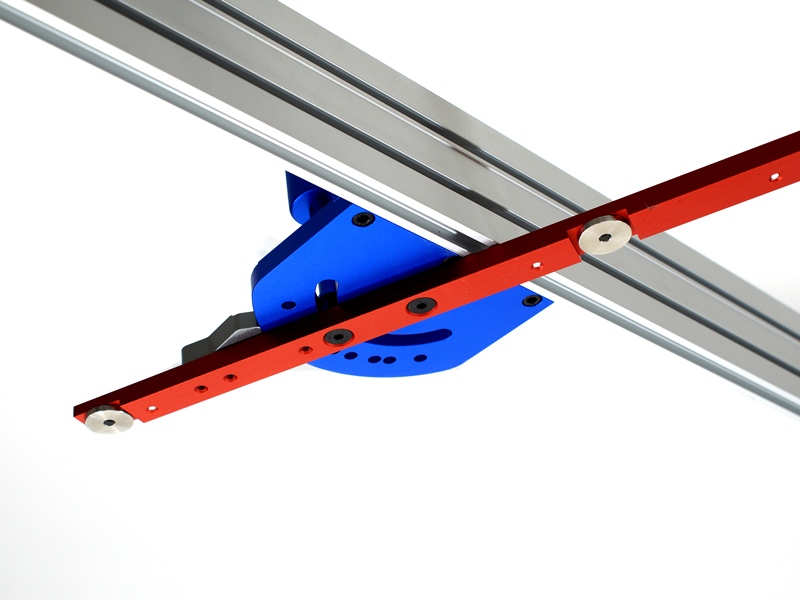

    Fence profile that fits with the fence bracket, and glider with adjustable angle. Used for positioning and moving parts in the machine. In a table saw this would be used for the sled, and in a router, this would line up the parts being fed through.

    The tracks in the profile only fit the fence bracket and the sliding adjustable angle.

    Fence profile that fits with the fence bracket, and glider with adjustable angle. Used for positioning and moving parts in the machine.

    Vis fuld beskrivelse

    Catalogue

    Download catalogue

    Files

    Title Size Description

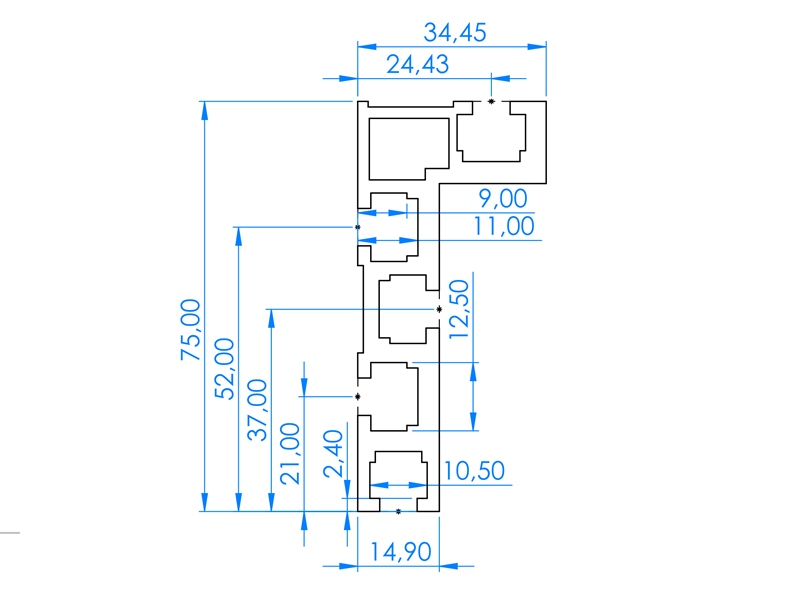

    Profile drawing for CAD 35.625 KB
