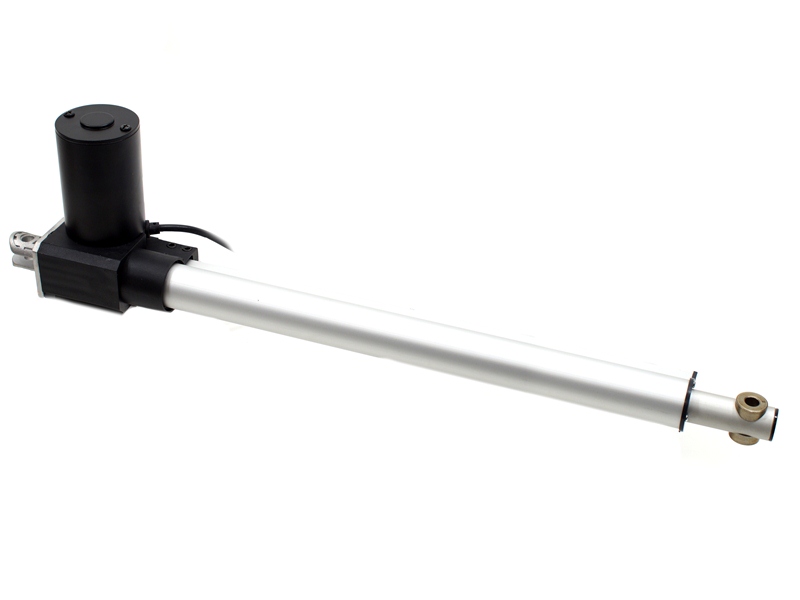

Heavy duty Linear actuator 2000N / 200kg

    Compact and economic heavy duty linear actuator for the bigger projects, where it can be used for numerous purposes. The actuator moves with 20mm per second and stops automatically when fully retracted or fully driven out. This makes it easy to mount without having to us endstops or similar.

    It is important to point out that there can be a margin of up to +/- 10% in regards to the movement of 20mm per second.

    The linear actuator can be used for lifting, turning, pulling or pushing objects, such as doors, gates, windows, tools etc. You should always consider safety before using it.

    Connecting

    The actuator is connected directly to 12V or 24V depending on the chosen model. It will retract or drive out depending on connected polarity. Reversing the polarity will reverse the direction. This can be done with a two-pole switch, relay or other controls. The is a 100cm cable on every model.

    Construction

    The actuator is made of anodized aluminum and should not be used outdoors, or in exposed places.

    The holes in both ends for mounting are 10mm. You will typically bolt the actuator in both ends so that it can move freely when moving in and out.

    Force calculations

    We always recommend that you calculate how much force is needed before mounting an actuator, alternatively test it out. An easy way to calculate this is the Lever principle.


    Compact and economic linear actuator for the bigger projects, where it can be used for numerous purposes. Connects to 12V or 24V.

    Vis fuld beskrivelse


    Pick voltage

      12V
      24V

    Datasheet

    Download datasheet
