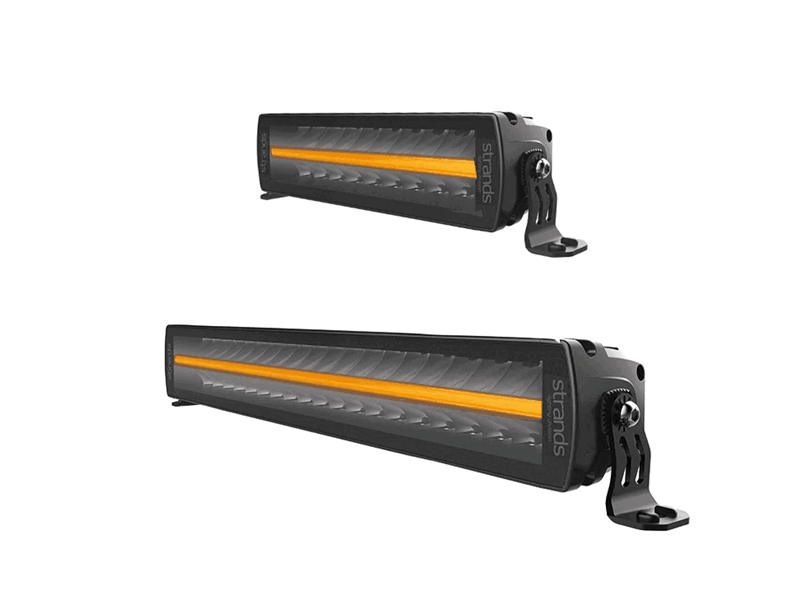

E-approved LED bars by Strands with dual-colour position-light in the middle making it a stylish and modern look. The LED bars are available in various lengths.
Standard :
12" version: 8.000 theoretical lumen - 1 Lux @ 437meter
22" version: 16.000 theoretical lumen - 1 Lux @ 450meter

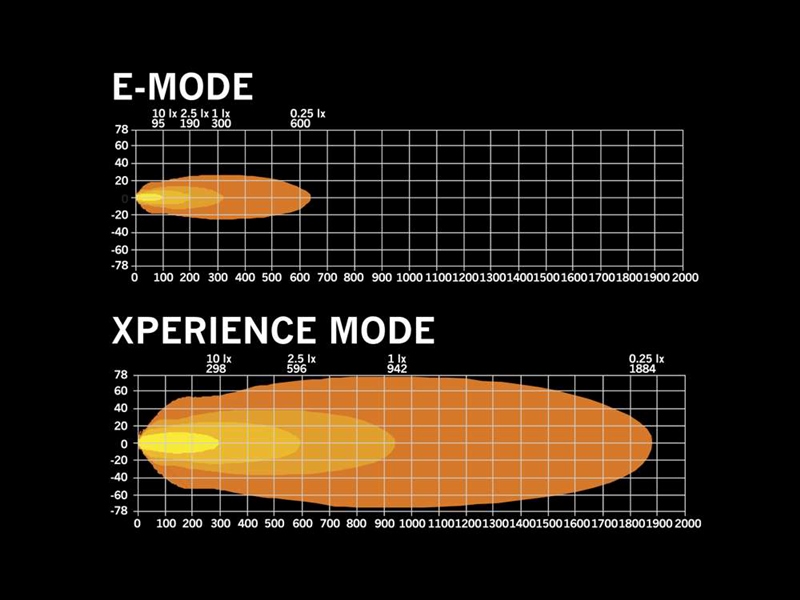

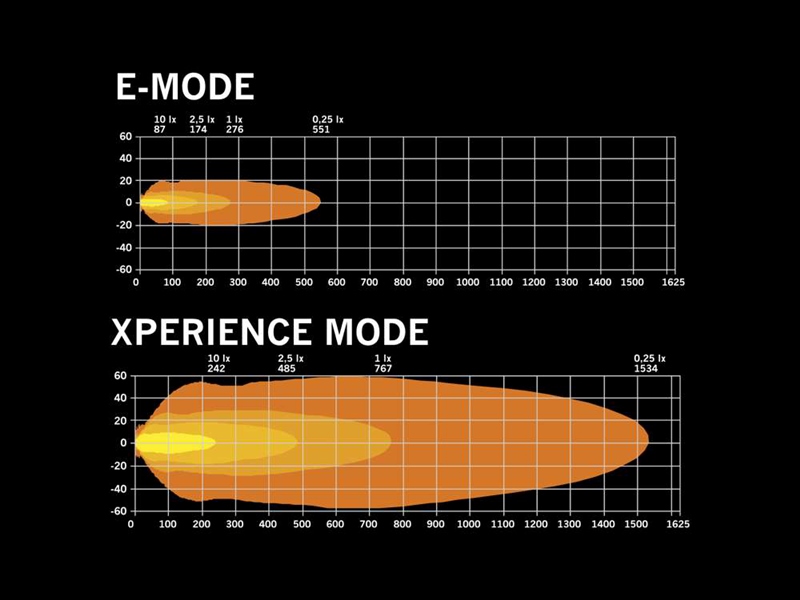

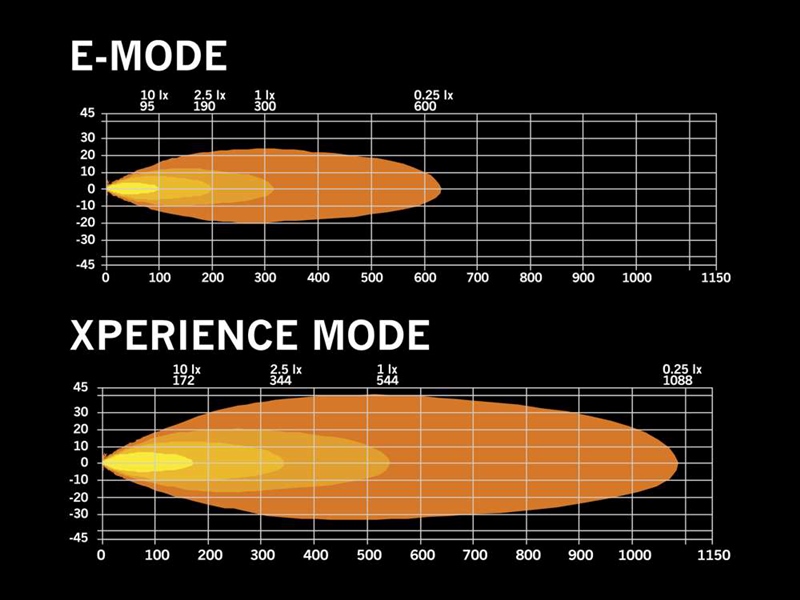

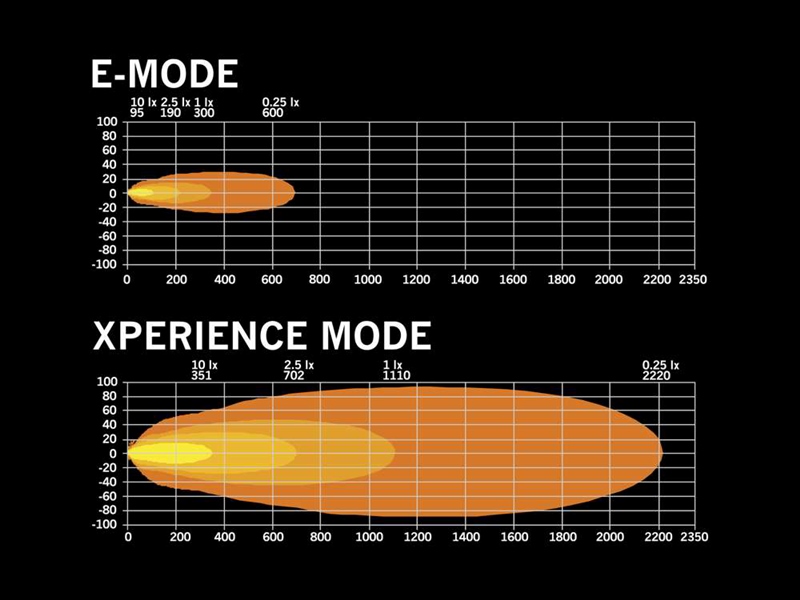

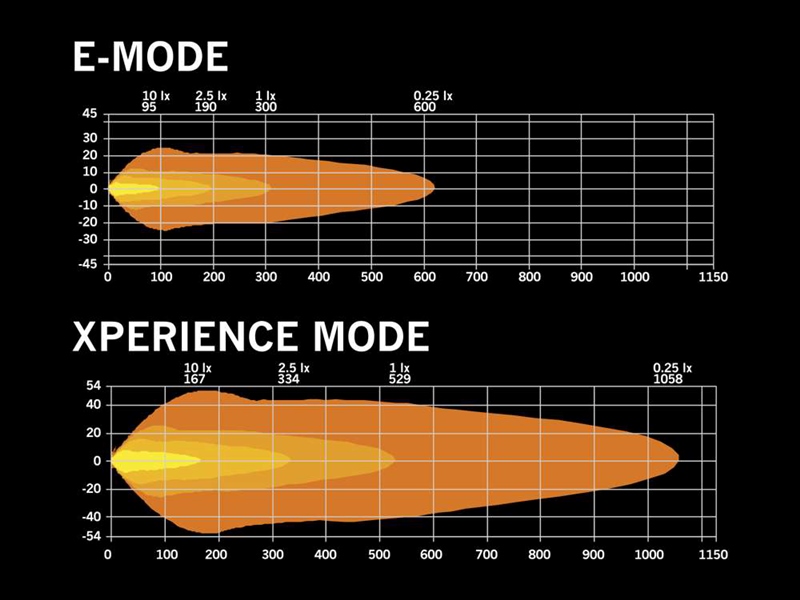

The XPA version has a lower reference number, but shines significantly longer/wider than standard in Xperience Mode:
8" version: 4.350 theoretical lumen - 1 Lux @ 544meter
12" version: 6.757 theoretical lumen - 1 Lux @ 529meter
22" version: 13.514 theoretical lumen - 1 Lux @ 767meter
32" version: 20.271 theoretical lumen - 1 Lux @ 942meter
42" version: 27.028 theoretical lumen - 1 Lux @ 1.110meter
The dual-color position-light gives you the possibility to change between white and yellow positions-light as you feel like it so that it fits your vehicle.
The combo-light takes the best of a "spot-" and "flood" light bar. On each side, there are flood lenses, and in the center, spot lenses. This way you have a good combination of the broad light spreading from the sides and the focused light in the center.
The lens glass is produced in polycarbonate and the lamp housing is made of powder-coated aluminum to achieve a sleek design and good cooling for the LEDs.
There are brackets included for mounting and also a pre-mounted 4-pin DT plug, which makes the installation much easier.
- Black: Minus / -
- Red: High-beam
- White: White position-light
- Yellow: Yellow position-light
E-approvements: ECE R112, R7, R10, CE
XPA : ECe R10.06 R148 R149
Ref.: 809179, 809180, 809181, 809182, 809183
XPA Ref. 809425A, 809426A, 809427A, 809428A, 809429A
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
It is not permitted to cut off the plug. If the plug is cut off, the warranty on the lamp will be void.
Facts for DR 12" - OUTLET
| Consumption: | 45W |
| Kelvin: | 6000K |
| LEDs: | 20 |
| Lumen effective: | 3294lm |
| Lumen theoretical: | 8000lm |
| Operating temperature: | – 30°C to +65°C |
| Reference: | 45 |
| Voltage: | 10-40V DC |
Facts for DR 22" - OUTLET
| Consumption: | 91W |
| Kelvin: | 6000K |
| LEDs: | 40 |
| Lumen effective: | 6316lm |
| Lumen theoretical: | 16000lm |
| Operating temperature: | – 30°C to +65°C |
| Reference: | 45 |
| Voltage: | 10-40V DC |
Facts for XPA DR 8"
| Consumption: | 55W |
| Kelvin: | 5700K |
| Lumen effective: | 4300lm |
| Lumen theoretical: | 4800lm |
| Operating temperature: | – 35°C to +60°C |
| Reference: | 20 |
| Voltage: | 10-32V DC |
Facts for XPA DR 12"
| Consumption: | 84W |
| Kelvin: | 5700K |
| Lumen effective: | 6120lm |
| Lumen theoretical: | 6757lm |
| Operating temperature: | – 30°C to +60°C |
| Reference: | 20 |
| Voltage: | 10-32V DC |
Facts for XPA DR 22"
| Consumption: | 149W |
| Kelvin: | 5700K |
| Lumen effective: | 11500lm |
| Lumen theoretical: | 13514lm |
| Operating temperature: | – 35°C to +60°C |
| Reference: | 20 |
| Voltage: | 10-32V DC |
Facts for XPA DR 32"
| Consumption: | 245W |
| Kelvin: | 5700K |
| Lumen effective: | 19150lm |
| Lumen theoretical: | 20271lm |
| Operating temperature: | – 35°C to +60°C |
| Reference: | 20 |
| Voltage: | 10-32V DC |
Facts for XPA DR 42"
| Consumption: | 400W |
| Kelvin: | 5700K |
| Lumen effective: | 2550lm |
| Lumen theoretical: | 27028lm |
| Operating temperature: | – 30°C to +60°C |
| Reference: | 20 |
| Voltage: | 10-32V DC |
Strands double-rowed LED light-bar with dual colour position-light in the middle. Standard and XPA series. E-approved for road use.
