Strands FOR9T Aura, LED strobe and marker 10-48V

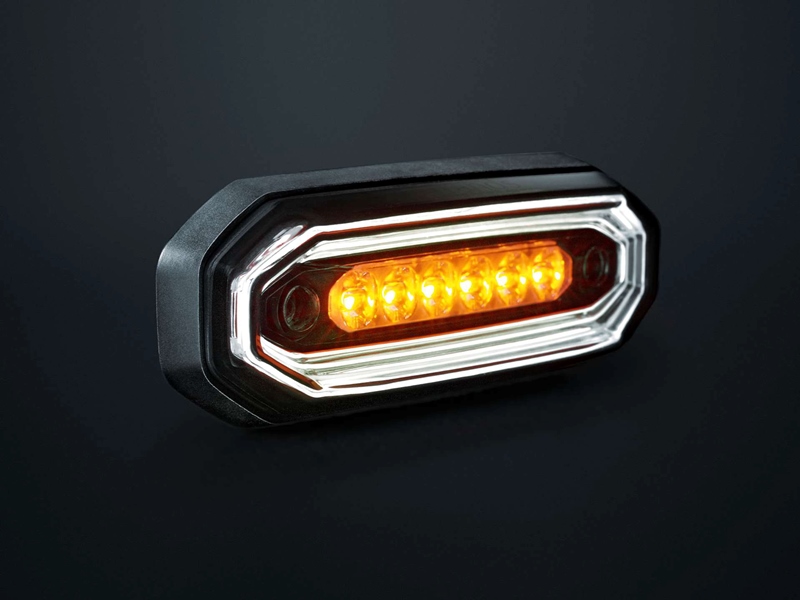

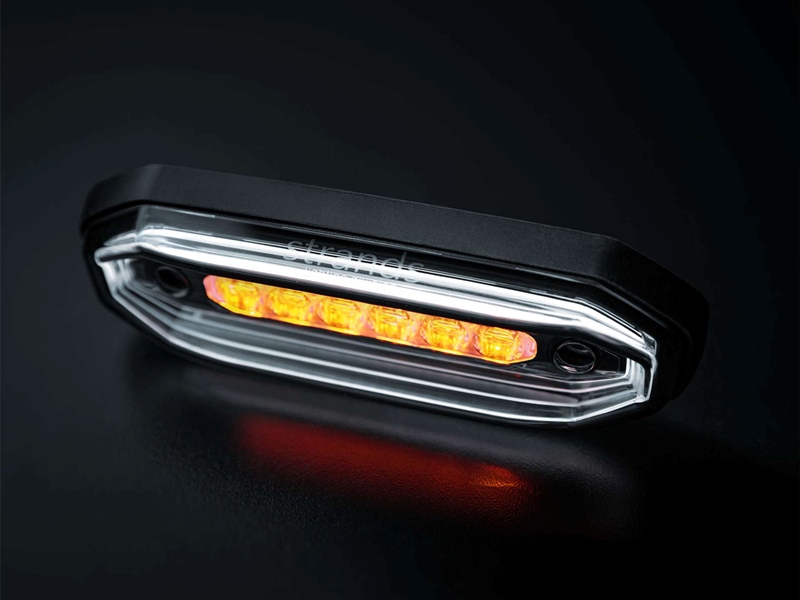

The Strands FOR9T Aura combines a powerful warning light in the center with a sleek, integrated position light on the edge, all in one compact unit. This gives the lamps a modern and distinct appearance both when the lights are on and off.

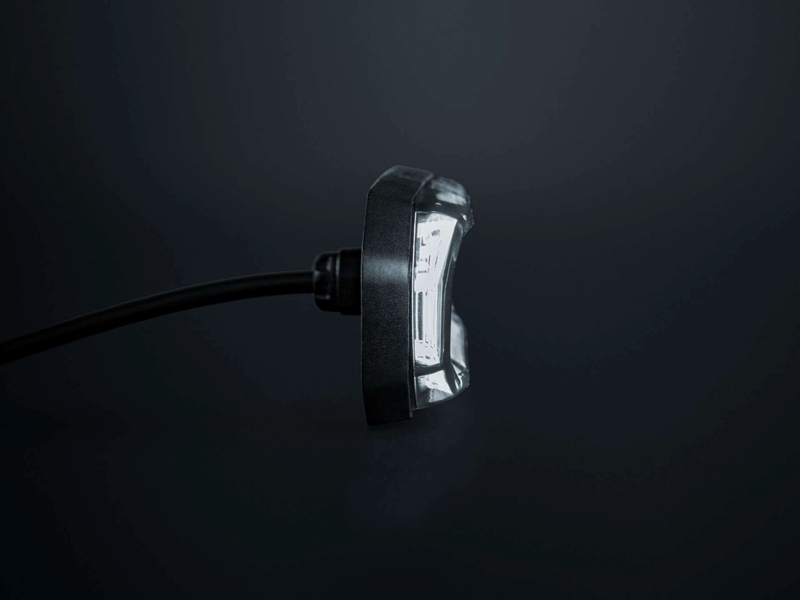

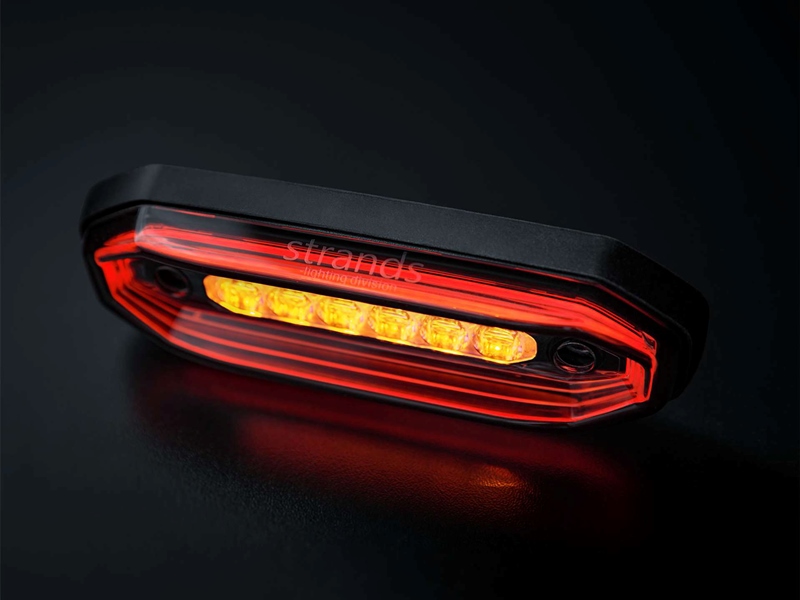

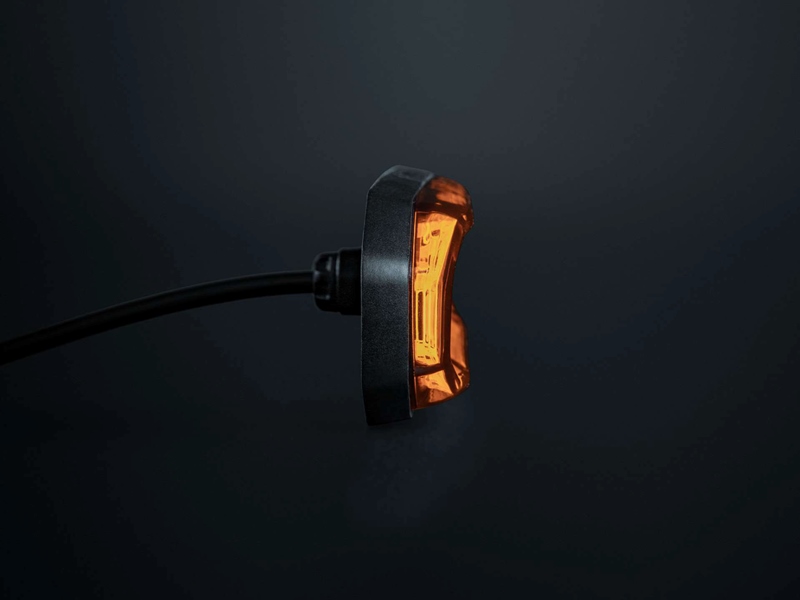

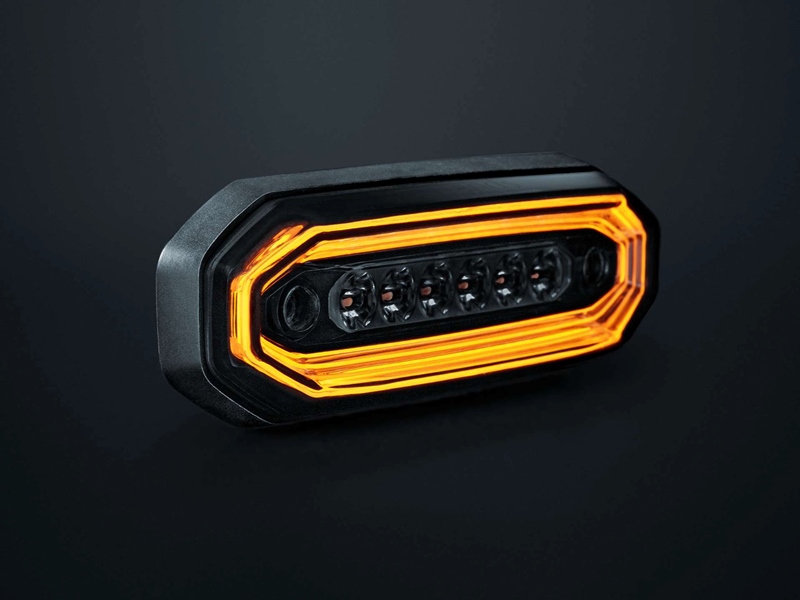

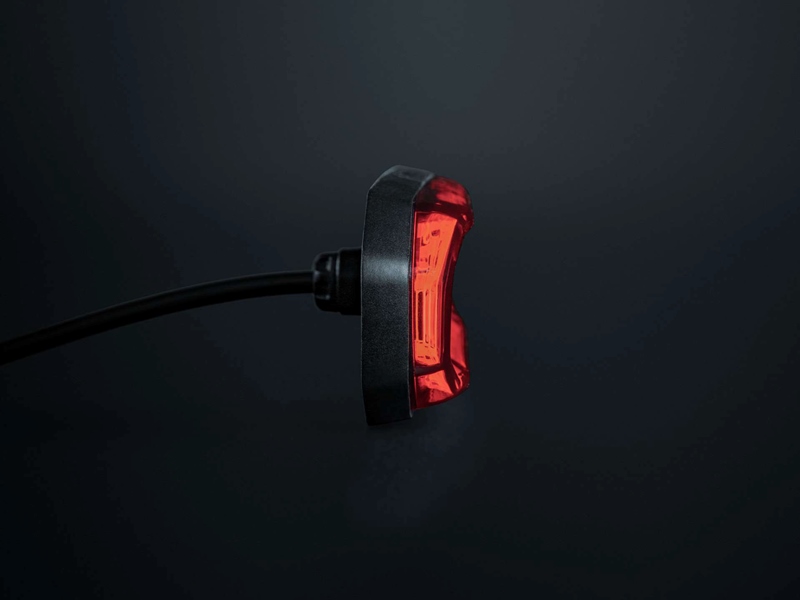

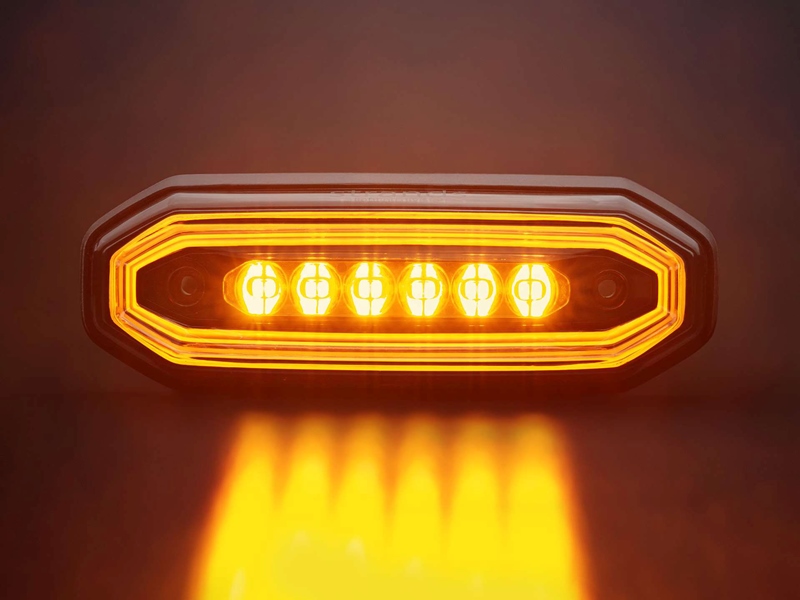

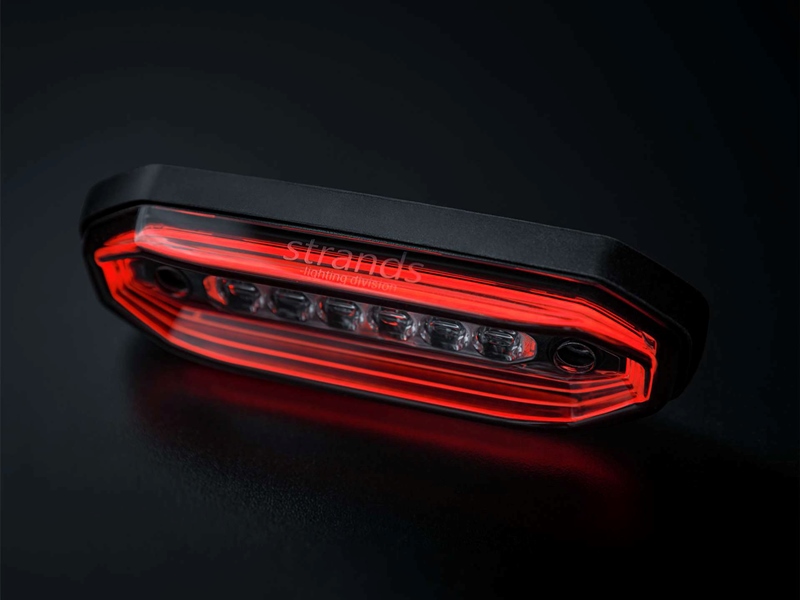

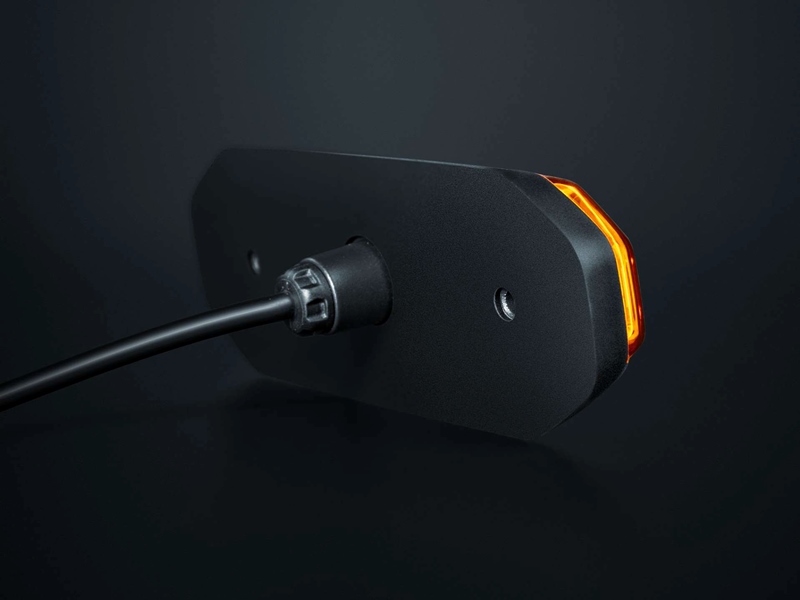

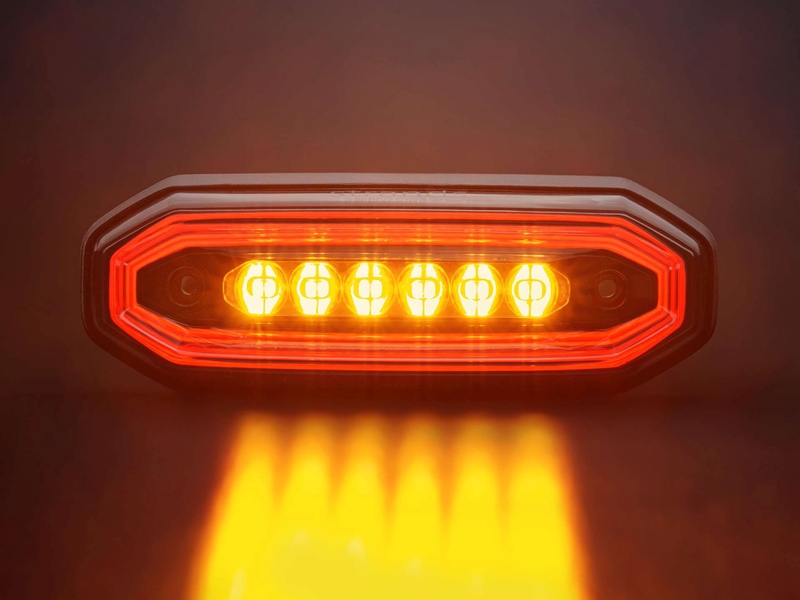

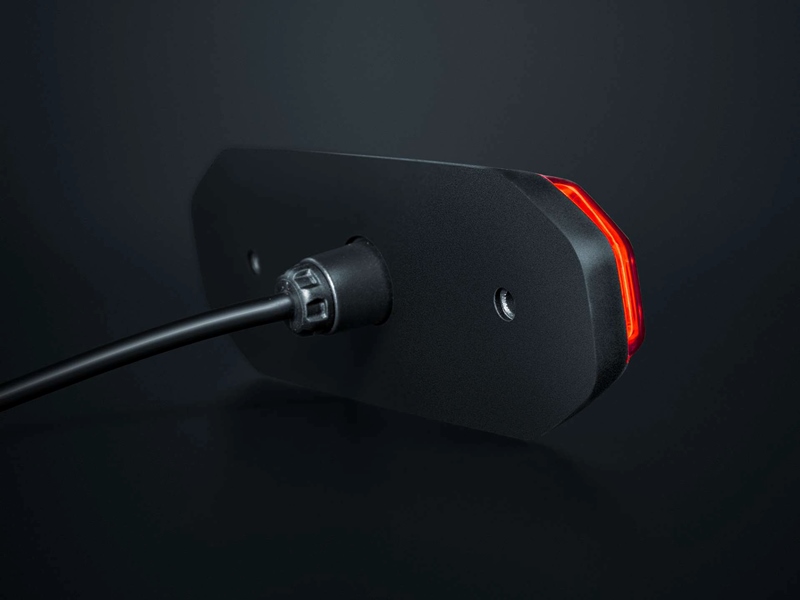

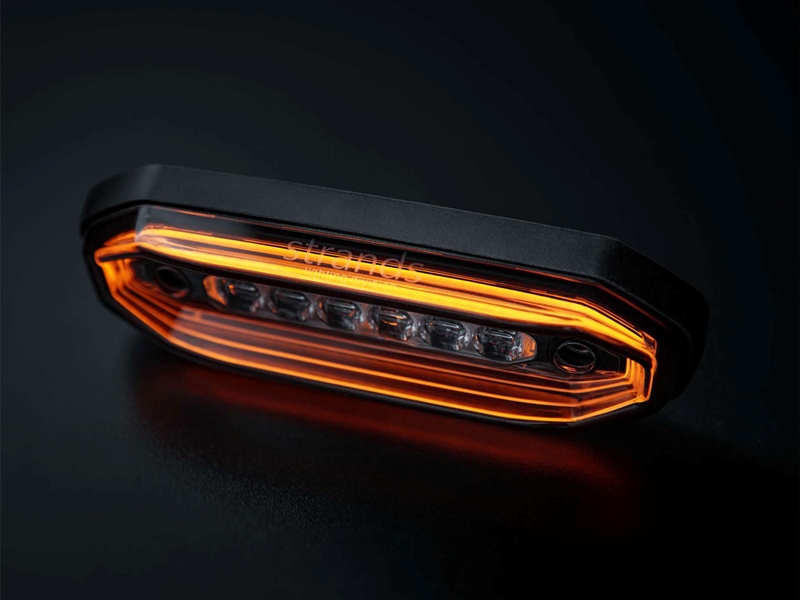

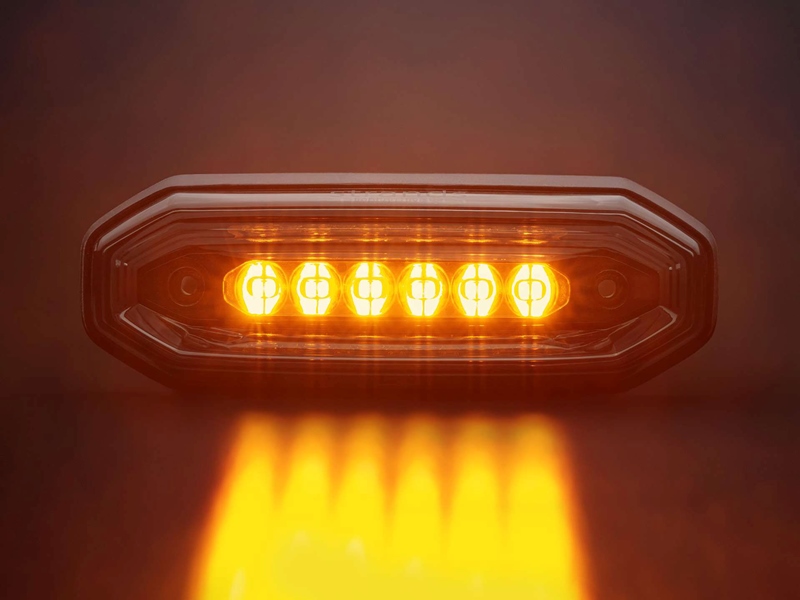

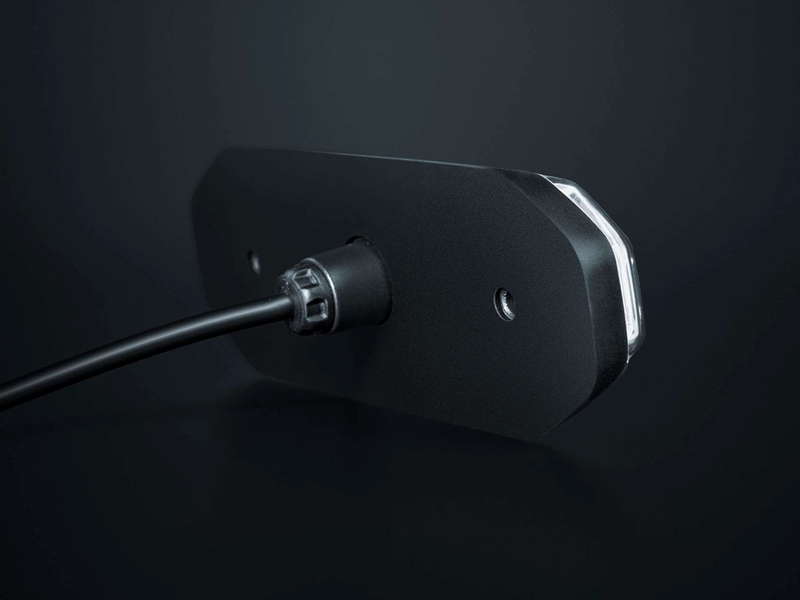

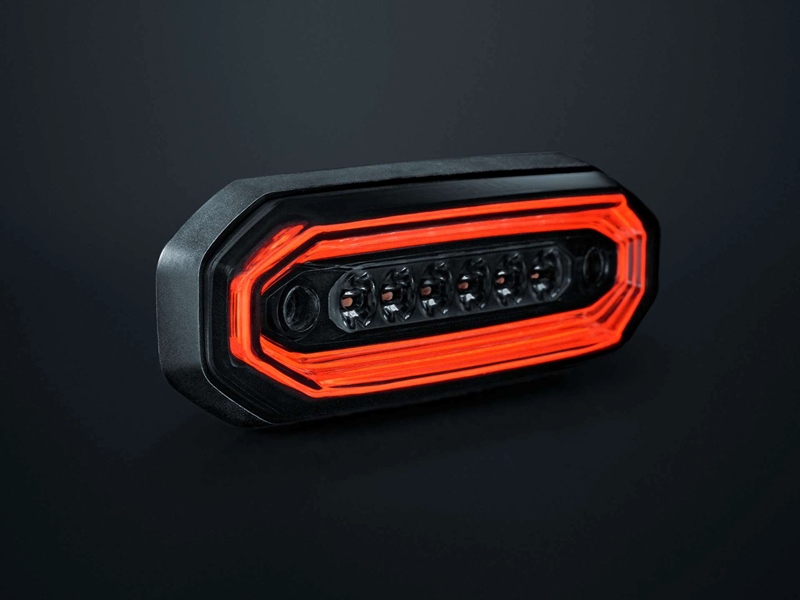

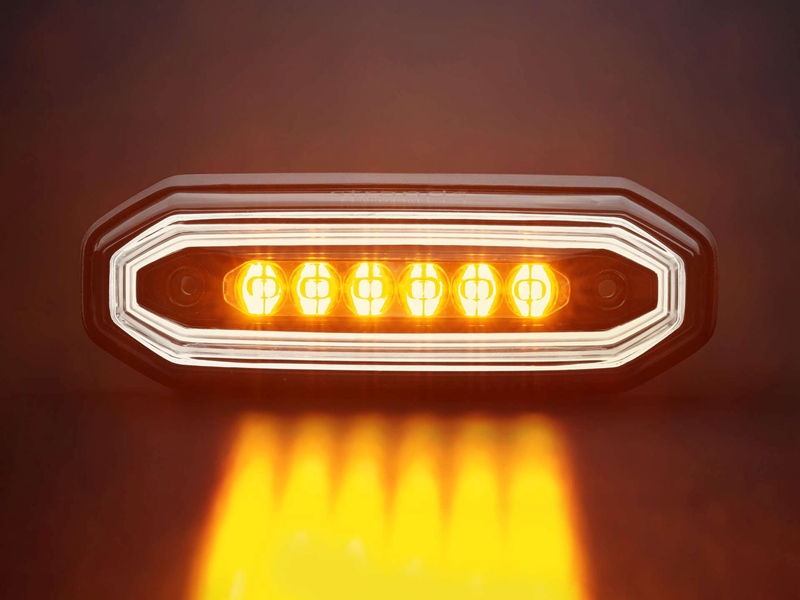

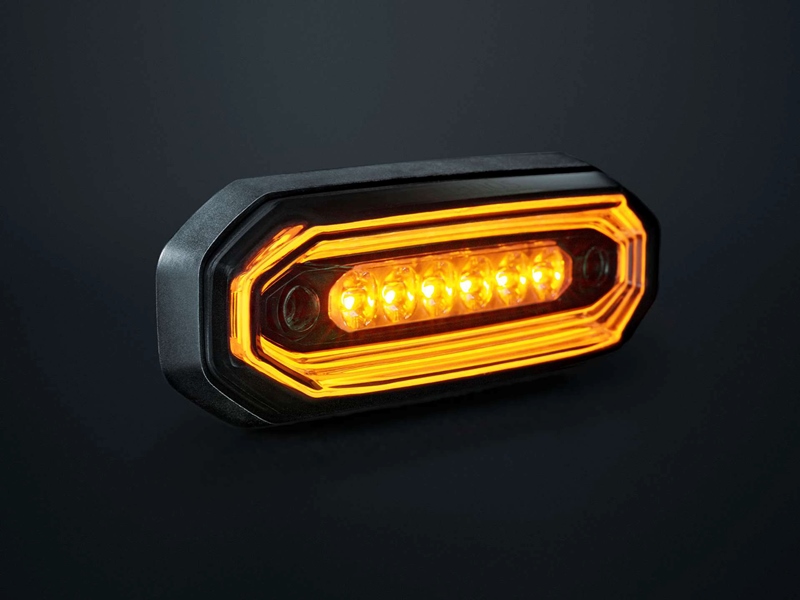

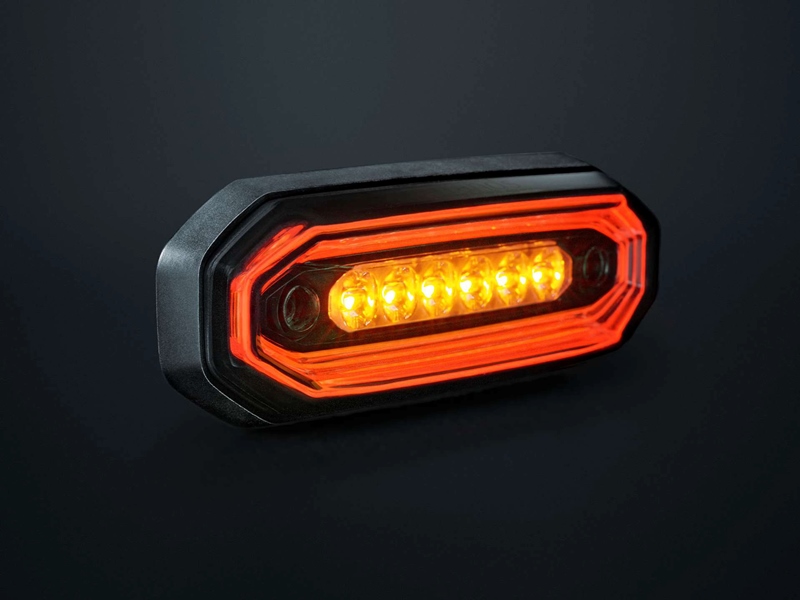

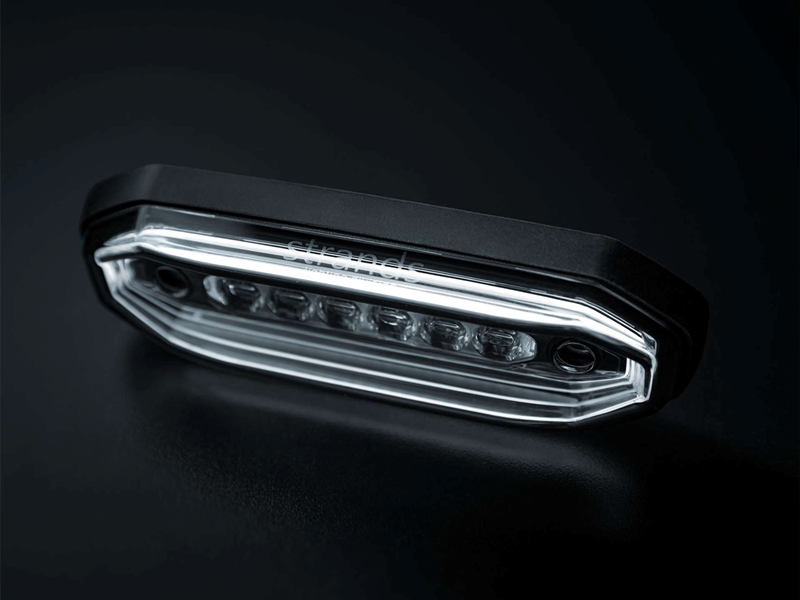

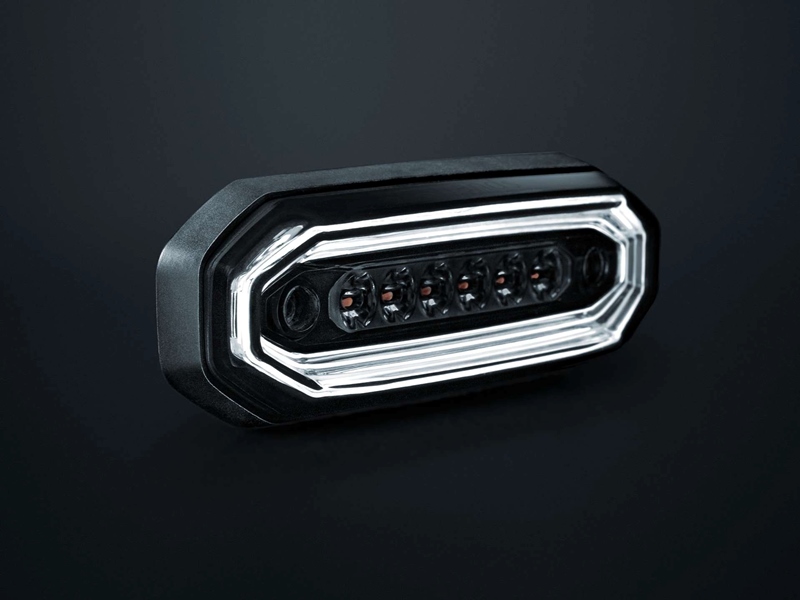

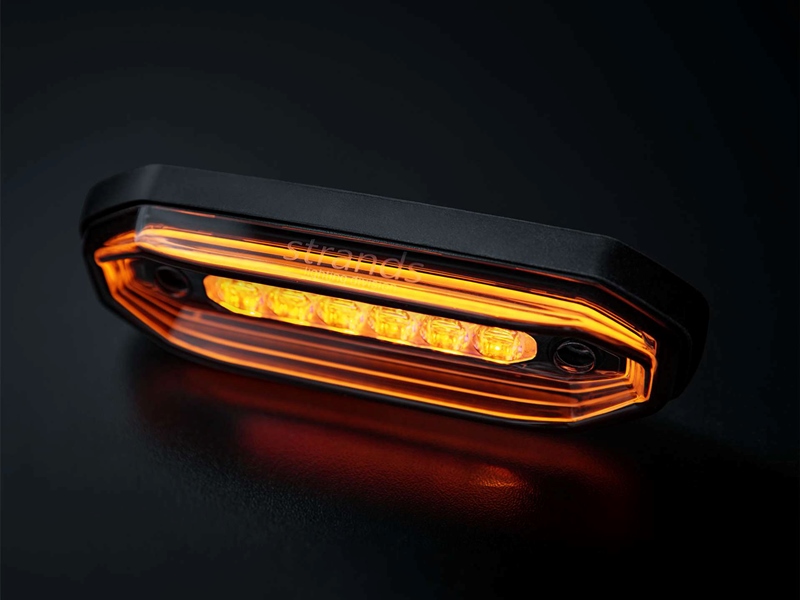

The lamps are currently available with red, white, and yellow marker lights, as well as yellow strobe lights. Both the strobe light and marker lights can be controlled individually and used simultaneously.

This is an elegant solution for those who need both marker and warning lights, eliminating the need for additional units that require installation and connection.

With its distinctive design, high visibility, and robust construction, the FOR9T Aura is an ideal choice for professional vehicles and demanding work environments.

The warning light is ECE R65 Class 2 approved, offering 20 different flash patterns with separate settings for day and night driving. The integrated position light is ECE R148 approved. Additionally, they are ECE R10 approved, ensuring electromagnetic compatibility.

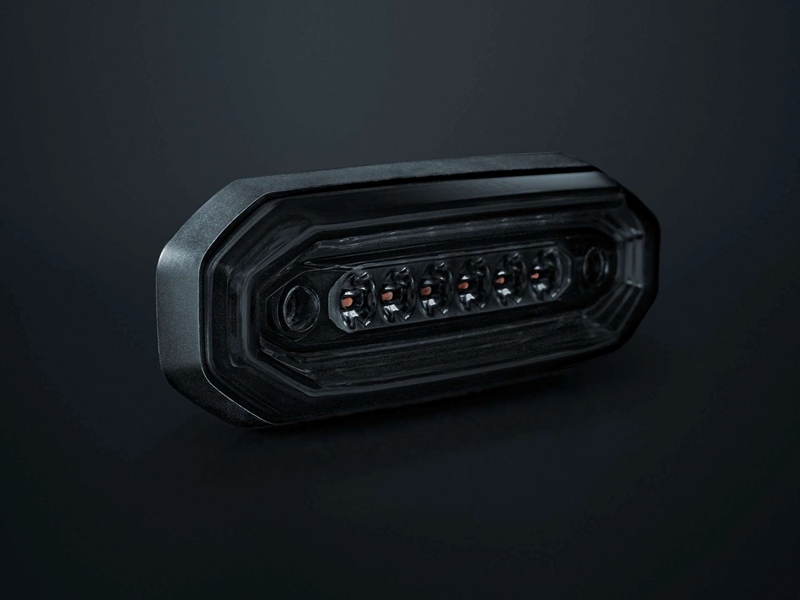

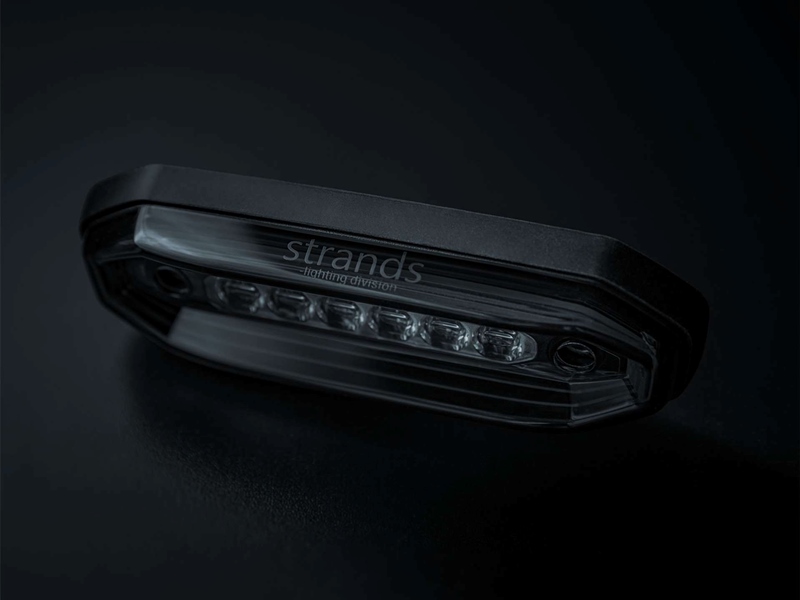

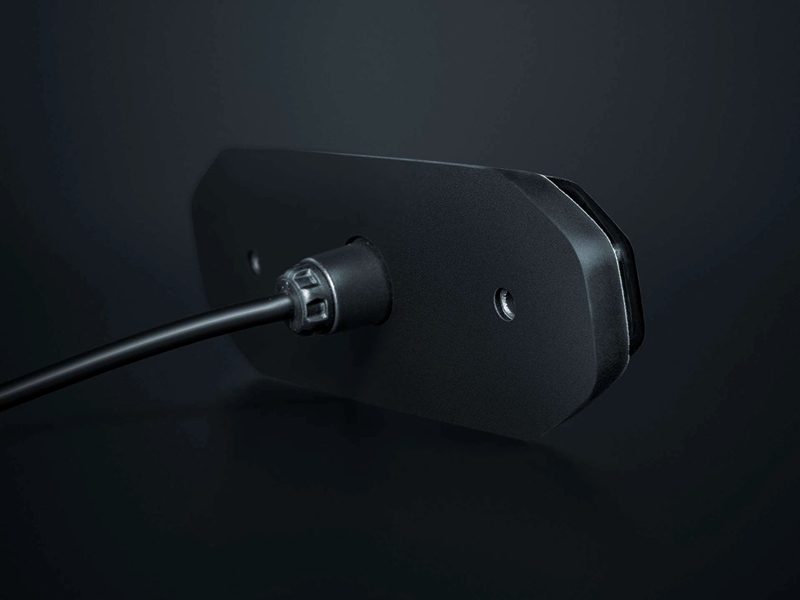

The durable aluminum housing, impact-resistant polycarbonate lens, and tinted surface ensure a long-lasting solution built for daily use under challenging conditions. With IP67 protection, the lamps are resistant to dust and water, making them suitable for installation in exposed locations.

The FOR9T Aura offers an operating voltage range of 10-48 V, making it compatible with both 12V and 24V systems.

Connection

The strobe and warning light is connected like shown below:

• White = Plus marker light (10V-48V)
• Red = Plus warning light  (10V-48V)
• Black = Minus / Ground
• White = Syncronization, flash pattern and grouping
• Gray = Signal wire for asyncronization

Flash-pattern

When you pulse the yellow wire to plus, the lamp changes to next flash-pattern. Three quick pulses set the lamp to flash-pattern 1.
