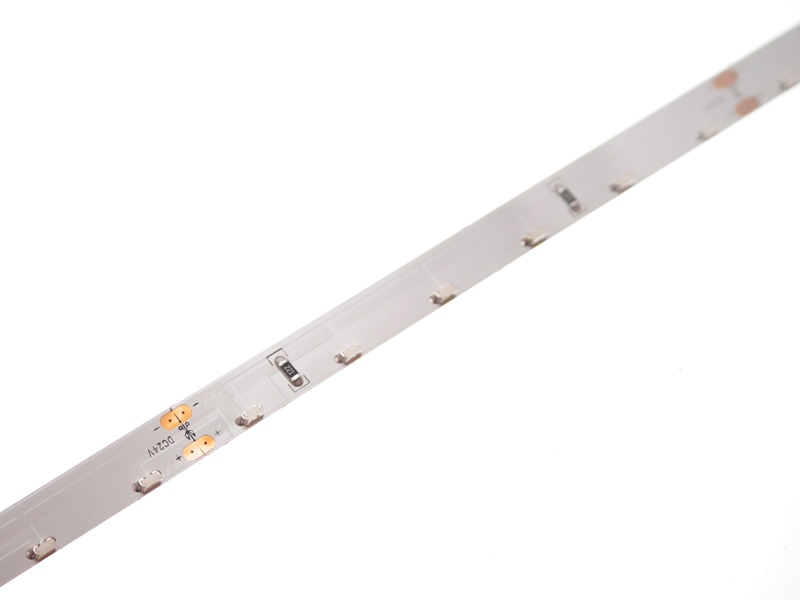

A special LED stripe for 24V that emits light to the sides and not to the front as usual. This can be used for edge lighting and signs, where depending on the design, it can be difficult to mount regular LED stripes.
There is 3m tape on the back of the stripe, for easier mounting. You can cut the stripe every 10 cm, where it has been marked.
The stripe is sold in units of 50cm, but can be delivered in max. lengths of 5 metres. If you order 5 units, your receive 5 x 50cm = 250 cm in total. You can then extend or cut it as needed.
We do not recommend that you join LED strips in lengths over 5 meter, as the brightness will be different from end to end. You can choose to connect power in the middle of a 10 meter strip.
The color of the strip can vary from order to order
We do not recommend that you join LED strips in lengths over 5 meter, as the brightness will be different from end to end. You can choose to connect power in the middle of a 10 meter strip.
The color of the strip can vary from order to order
We do not recommend that you join LED strips in lengths over 5 meter, as the brightness will be different from end to end. You can choose to connect power in the middle of a 10 meter strip.
The color of the strip can vary from order to order
We do not recommend that you join LED strips in lengths over 5 meter, as the brightness will be different from end to end. You can choose to connect power in the middle of a 10 meter strip.
The color of the strip can vary from order to order
We do not recommend that you join LED strips in lengths over 5 meter, as the brightness will be different from end to end. You can choose to connect power in the middle of a 10 meter strip.
The color of the strip can vary from order to order
Facts for Red
| Color: | Red ~625nm |
| Consumption per metre: | 4.2 Watts ~ 350mA |
| Division: | 10cm |
| LED per meter: | 60 |
| LED Type: | SMD 0402 |
| Light Scattering: | 120 ~ 140 degrees |
| Lumen: | 150 |
| Voltage: | 24Vdc |
| Width: | 8mm |
Facts for Blue
| Color: | Blue ~465nm |
| Consumption per metre: | 4.2 Watts ~ 350mA |
| Division: | 10cm |
| LED per meter: | 60 |
| LED Type: | SMD 0402 |
| Light Scattering: | 120 ~ 140 degrees |
| Lumen: | 75 |
| Voltage: | 24Vdc |
| Width: | 8mm |
Facts for Green
| Color: | Green ~525nm |
| Consumption per metre: | 4.2 Watts ~ 350mA |
| Division: | 10cm |
| LED per meter: | 60 |
| LED Type: | SMD 0402 |
| Light Scattering: | 120 ~ 140 degrees |
| Lumen: | 300 |
| Voltage: | 24Vdc |
| Width: | 8mm |
Facts for Cool White
| Color: | 6000K |
| Consumption per metre: | 4.2 Watts ~ 350mA |
| Division: | 10cm |
| LED per meter: | 60 |
| LED Type: | SMD 0402 |
| Light Scattering: | 120 ~ 140 degrees |
| Lumen: | 600 |
| Voltage: | 24Vdc |
| Width: | 8mm |
Facts for Warm White
| Color: | 3000K |
| Consumption per metre: | 4.2 Watts ~ 350mA |
| Division: | 10cm |
| LED per meter: | 60 |
| LED Type: | SMD 0402 |
| Light Scattering: | 120 ~ 140 degrees |
| Lumen: | 550 |
| Voltage: | 24Vdc |
| Width: | 8mm |
A special LED stripe for 24V that emits light to the sides and not to the front as usual. Can be used for edge lighting and signs.
