Box that is fixed or mounted temporary on your trailer with LED lamps. Built in resistors remove the most CANBUS errors on your car.
The intelligent controller ensures that the ECE-approval is not invalidated, as it meassures the consumption on the LED lights. It will disconnect the LED lights if it measures a incorrect consumption, prompting an error in the car on the trailer failure.
The strong aluminum housing works a heat sink.

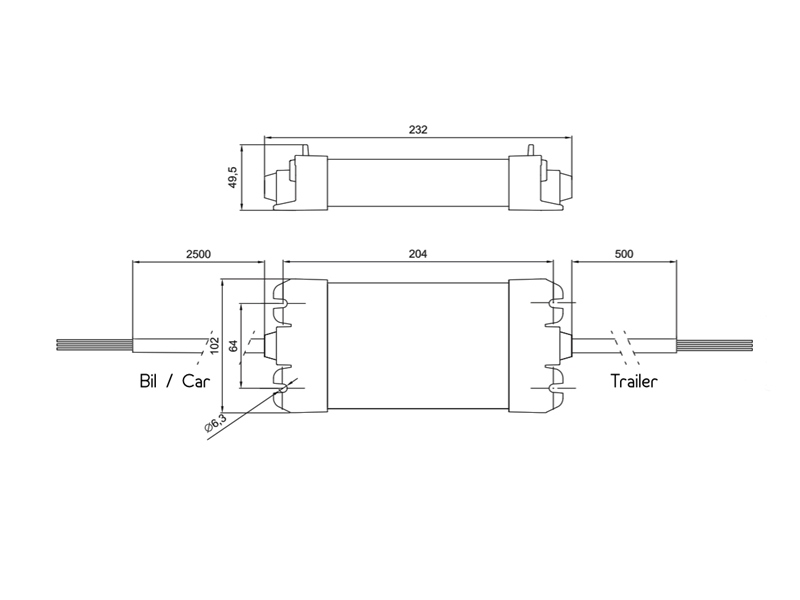

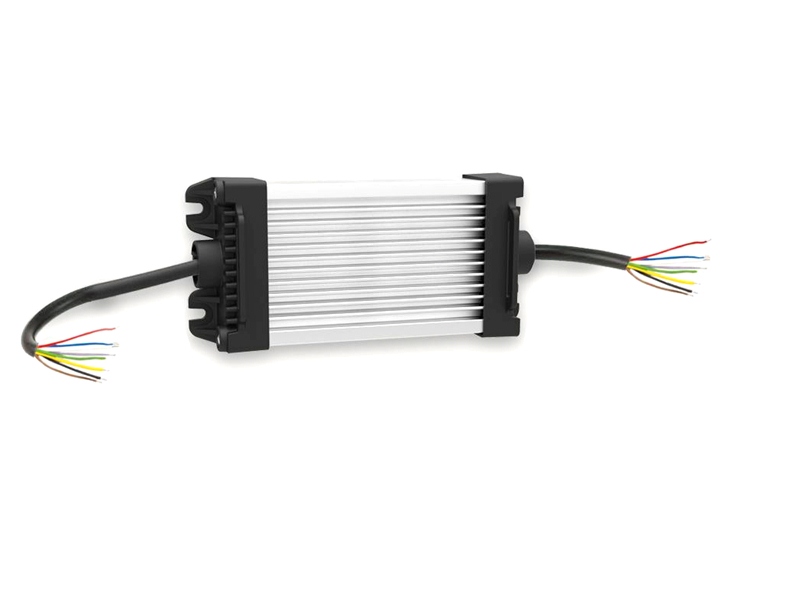

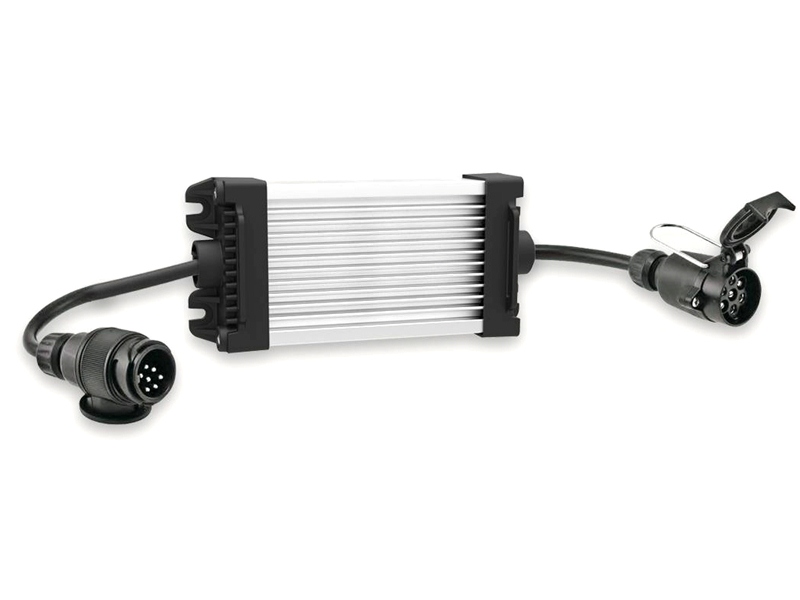

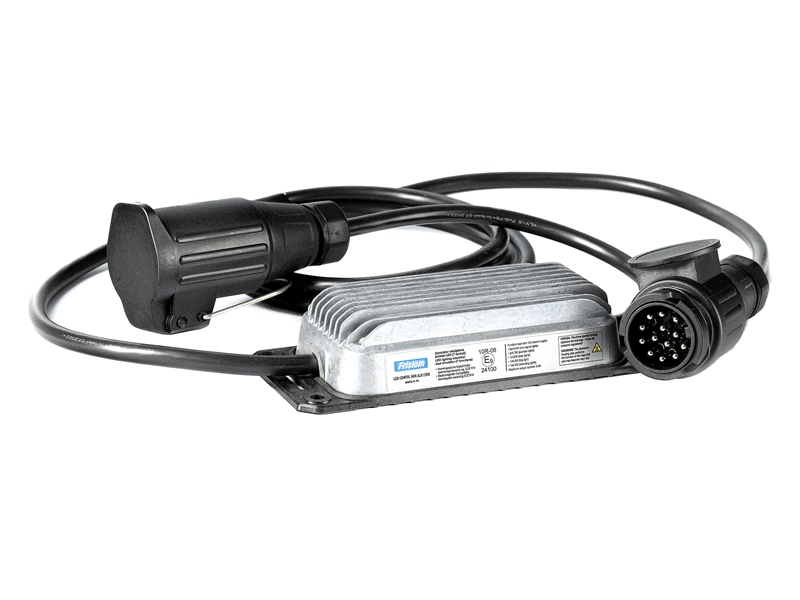

The box is available in three models, with 7-pin trailer-connecter, 13-pin trailer-connecter or 7-wire cable. All models have 2,36m cable from the cars output to box and 0,37m from box to the trailers plug
Protection
- Overconsumption
- Reverse polarity
- High temperature
Cable connection:
- White: Ground
- Red: Stop +
- Green: Indicator right +
- Yellow: Indicator left +
- Brown: Position light right +
- Black: Position light left +
- Gray: Reverse light +
- Blue: Fog light +
Facts
| Max consumption, fog: | 1,3A/17W |
| Max consumption, indicator: | 1,3A/17W |
| Max consumption, rear: | 0,4A/5,2W |
| Max consumption, reverse: | 1,3A/17W |
| Max consumption, stop: | 2,5A/32W |
| Operating temperature: | -40°C to +50°C |
| Voltage: | 12V |
