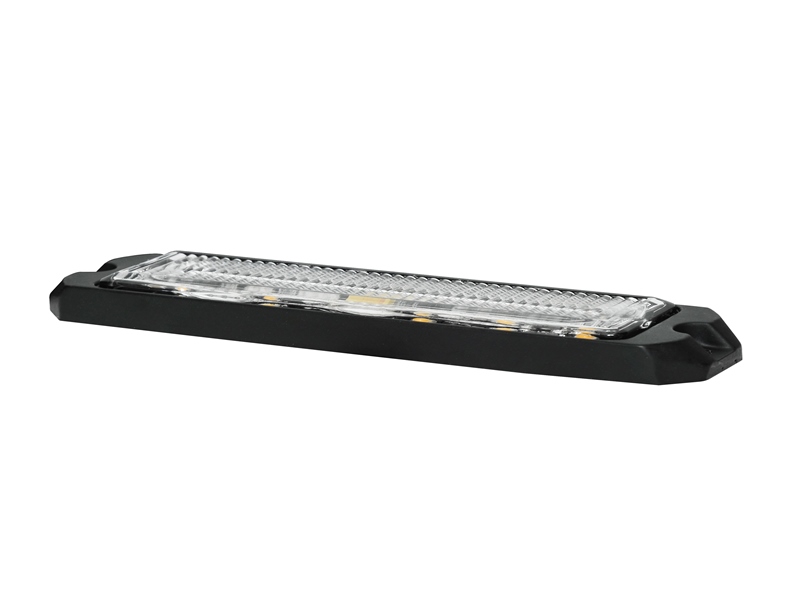

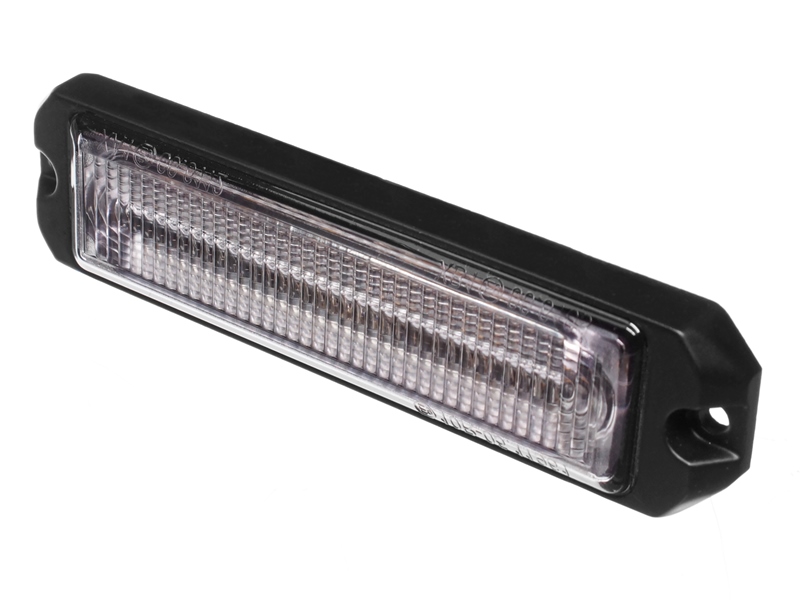

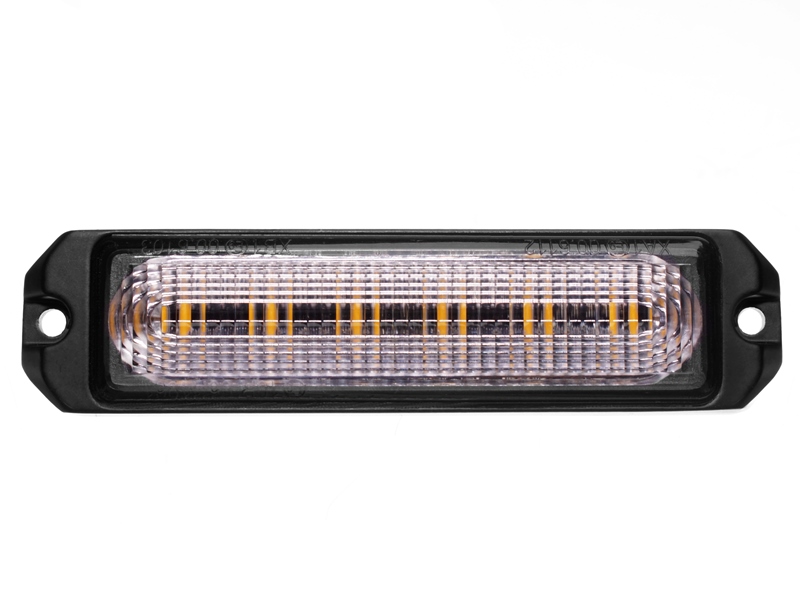

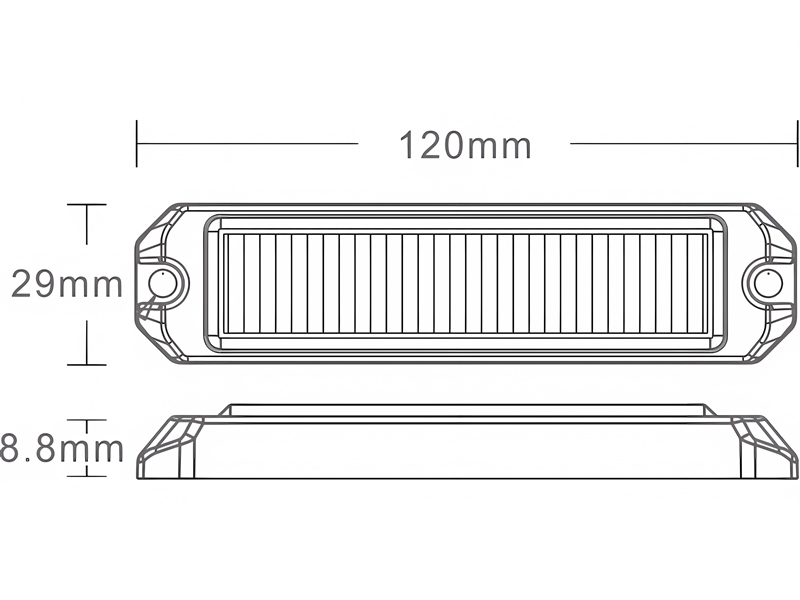

Dual color LED warning lamps with an extra-flat and slim design, allowing them to fit in many different places. They can be connected to both 12V and 24V, making it possible to use the LED warning lamps on many types of vehicles such as cars, trucks, and motorcycles.
The LED lamps are made of aluminum, which makes them highly resistant to Nordic weather conditions. The LED lamps are currently available in the S6 model in several different color combinations, featuring a built-in total of 12 × 3W LEDs.

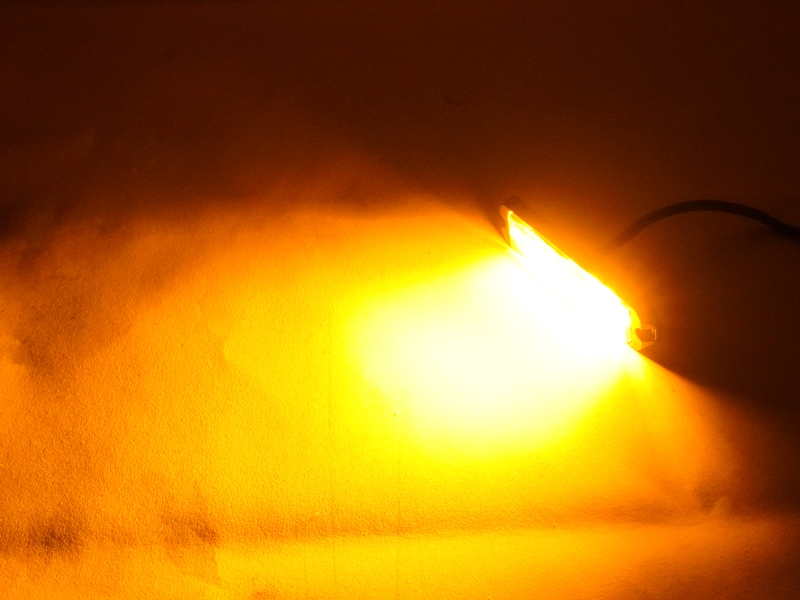

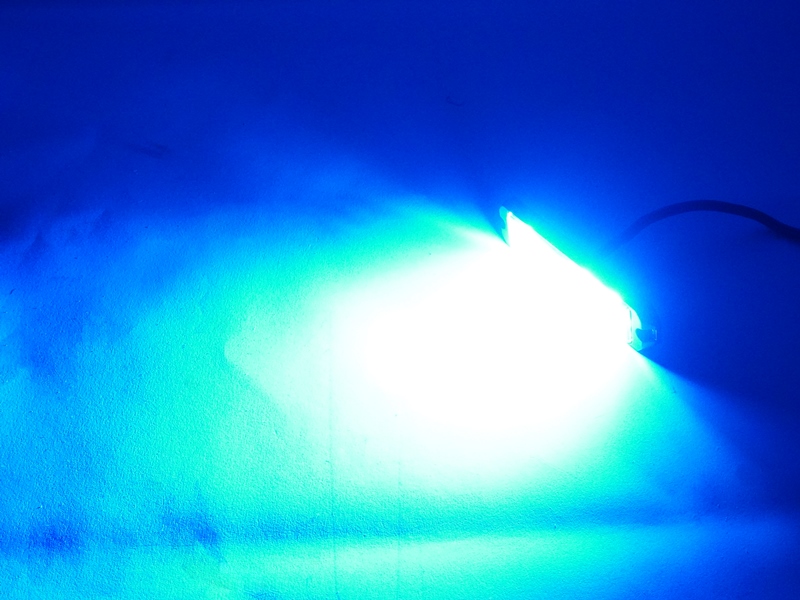

The LED lamps provide a powerful dual color strobe light, with the option to switch between a total of 19 different programs, which can be synchronized with other connected Prostrobe LED lamps.
The LED lamps are ECE R65 approved and can therefore be legally used throughout Europe on public roads and motorways.
Additional information can be found under downloads, where the product datasheet can be downloaded. The datasheet provides more detailed information about the individual flash patterns and programs.
Please note that the datasheet is unfortunately only available in English. Make sure to refer to “Dual color strobe light instructions” — the first section refers to the single-color version.

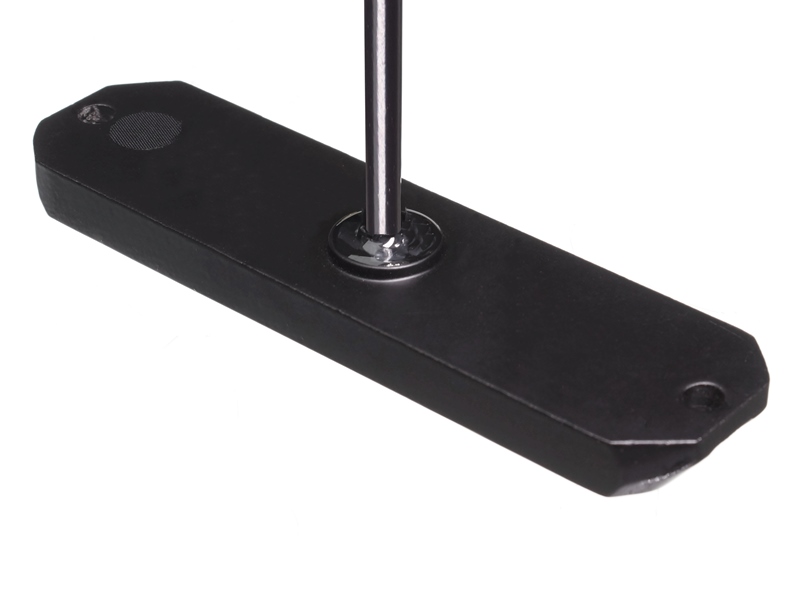

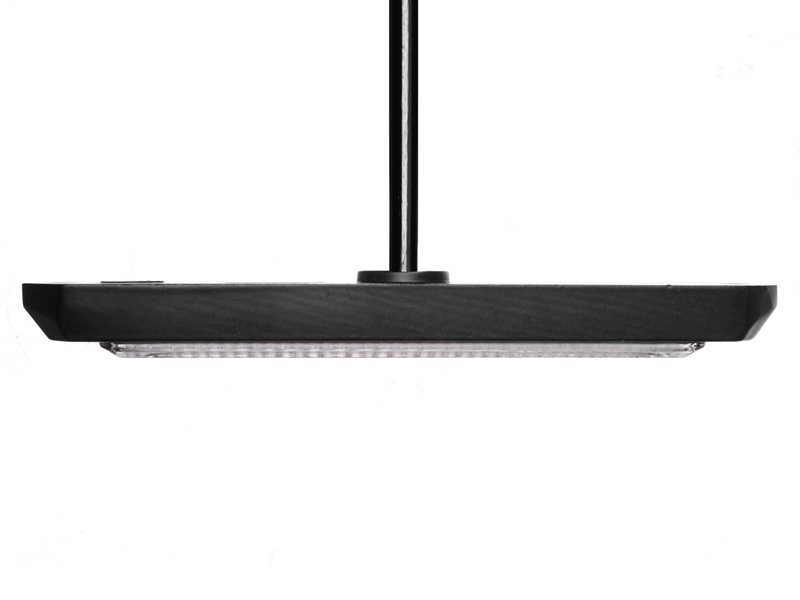

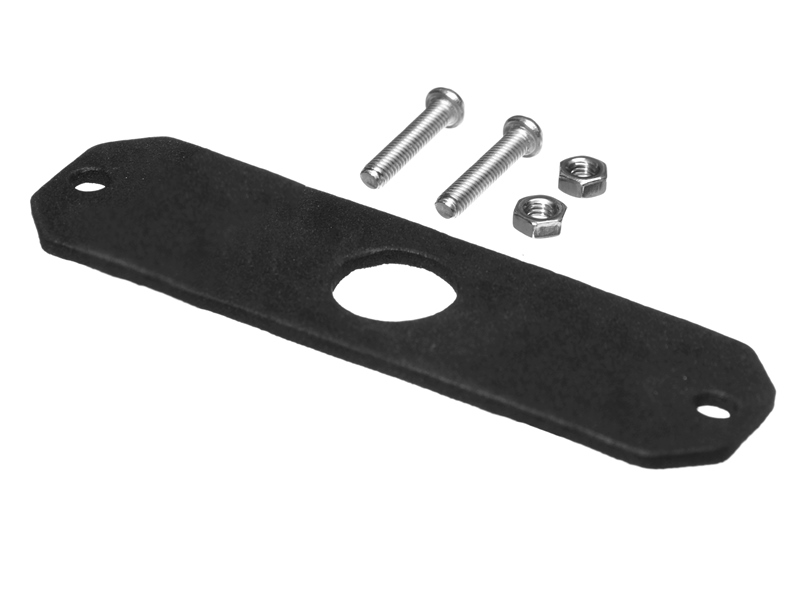

Bracket set
The set can be bought seperatly, and consists of 2 x 90 degree angle brackets, bolts, nuts and washers.
Connection
The strobelight connected quite easily as shown below.
- Red = Plus warning light, color 1 (12V-24V)
- Gray = Plus warning light, color 2 (12V-24V)
- Black = Minus
- Yellow = Blink pattern at plus and synchronization
- Grouping
When either the RED or the GREY wire is connected, the light will display only one color (color 1 or color 2).
When both the RED and GREY wires are connected at the same time, the light will alternate between the two colors (color 1 and color 2).
Blink pattern
When you pulse the yellow wire on red (+ / plus) for less than 1 second, you switch between the 19 different flash patterns / programs.
In pulse between 1-3 seconds, you switch to the previous flash pattern / program.
If the pulse is more than 5 seconds, the lamp will go to low power output. If the LED lamp is pulsed again, it will go back to high power output.
The lamp remembers the last selected flashing pattern, so you don’t have to set it again each time.
Synchronization and grouping
Connect the yellow wires of all lamps together to enable synchronization. Maximum 12 units can be synchronized.
To activate alternating flash mode, connect the white wires of Group A to the red wire, and leave the remaining lamps as Group B. The lamps in Group A and Group B will then flash alternately.
If the white wire is disconnected, the lamps will return to synchronized flashing.
Ref. 500770, 500771, 500772, 500773, 500855, 500856, 500857, 500858
Axixtech M43 LP3, Axixtech M45 LP6, Axixtech MS6 M30
The R65 approval applies solely to yellow and blue strobe lights. Red strobe lights are not covered by the approval.
The R65 approval applies solely to yellow and blue strobe lights. Red strobe lights are not covered by the approval.
The R65 approval applies solely to yellow and blue strobe lights. Red strobe lights are not covered by the approval.
Facts for Yellow / Blue, S6 - 6 x LED
| Flash patterns: | 21 |
| LEDs: | 12 x 3W |
| Temperature: | – 30°C to +60°C |
| Voltage: | 12V - 24V |
Facts for Yellow / Red, S6 - 6 x LED
| Flash patterns: | 21 |
| LEDs: | 12 x 3W |
| Temperature: | – 30°C to +60°C |
| Voltage: | 12V - 24V |
Facts for Accessories, Bracket set
| Flash patterns: | 21 |
| Temperature: | – 30°C to +60°C |
| Voltage: | 12V - 24V |
Dual color LED warning lamps with an extra flat design, that can be mounted on cars, trucks and motorcycle. Bright light and many functions. ECE R65 approved.
