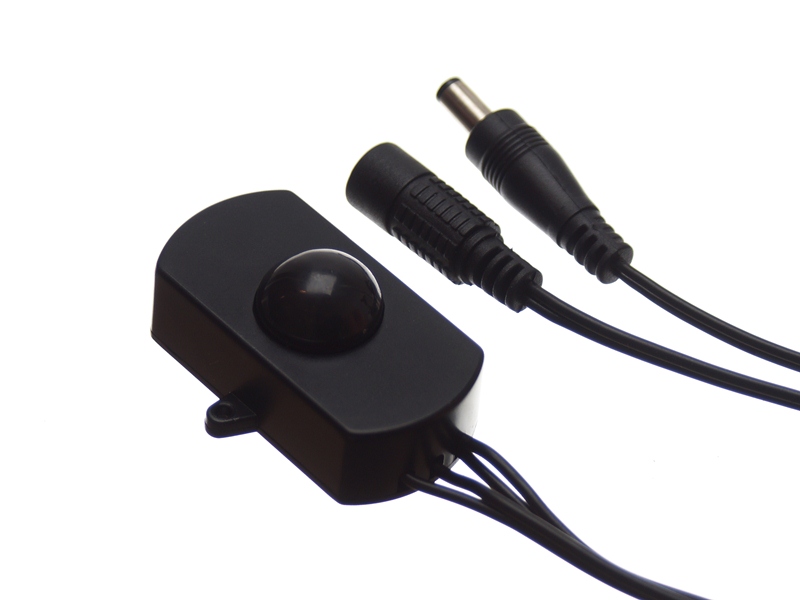

A compact PIR sensor that turns on the power when movement is detected.
It is easy to connect with DC-connectors in both input and output, making it easy to connect a power supply. There is 30cm cable on the input and the output. If you want to use DC connectors with screw terminals, you need DC connectors with 2.1mm inner diamter.
It can be connected from 5V to 30V and the outputs have the same voltage as the input.
The delay can be set up from 2 to 30 seconds.
You should not cut of the connectors on the sensor. Use DC with screw terminals instead. There is no guarantee on sensors with cut off connectors.
You should not cut of the connectors on the sensor. Use DC with screw terminals instead. There is no guarantee on sensors with cut off connectors.
Facts for White
| Consumption: | 0,1 Watt |
| Delayed off: | 2-30 seconds |
| Max current: | 1.5A |
| Sensor angle: | about 110 degree |
| Sensor distance: | 5-7m or under (adjustable) |
| Voltage: | 5-30V |
Facts for Black
| Consumption: | 0,1 Watt |
| Delayed off: | 2-30 seconds |
| Max current: | 1.5A |
| Sensor angle: | about 110 degree |
| Sensor distance: | 5-7m or under (adjustable) |
| Voltage: | 5-30V |
A compact motion-sensor that turns on the power when it senses any motion. A black and a white model.
