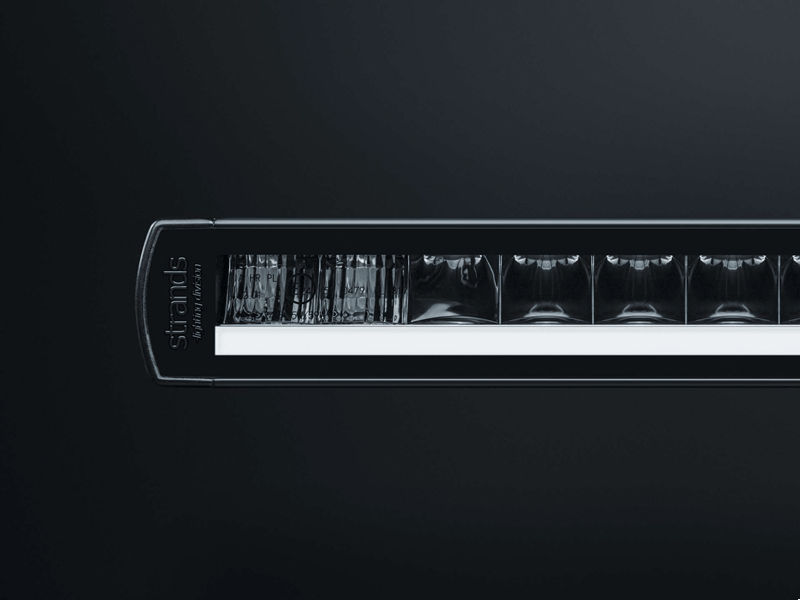

E-approved LED bars by Strands with dual-colour position-light at the bottom making it a stylish and modern look. The LED bars are available as a 12" version with 32W / 4.000 theoretical lumen and a 22" version with 59W / 8.000 theoretical lumen.
The dual-color position-light gives you the possibility to change between white and yellow positions-light as you feel like it so that it fits your vehicle.

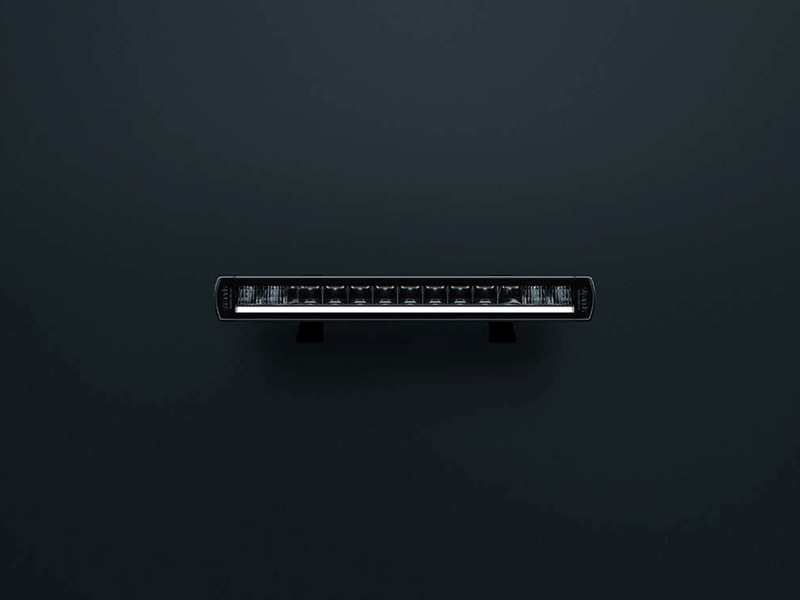

The 12" is a spot model. It lights give a focused and high beam.

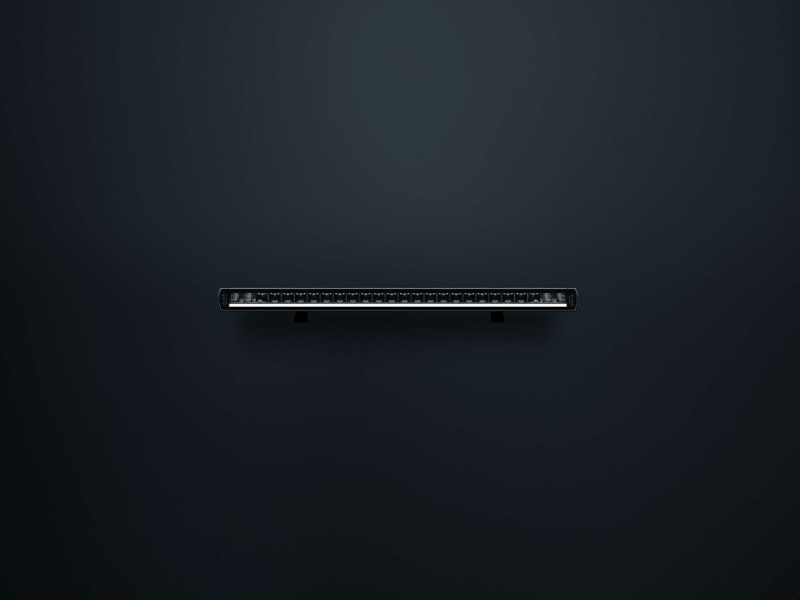

The 22" is a combo model. On each side sits Flood lenses and in the center - Spot lenses. This way you have a good combination of the broad light spreading from the sides and the focused light in the center.

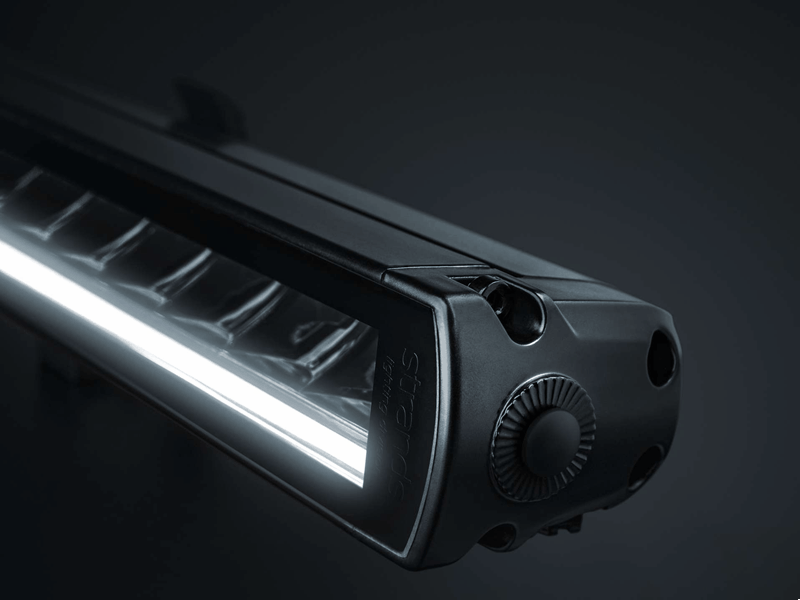

The lens glass is produced in polycarbonate and the lamp housing is made of powder-coated aluminum to achieve a sleek design and good cooling for the LEDs.

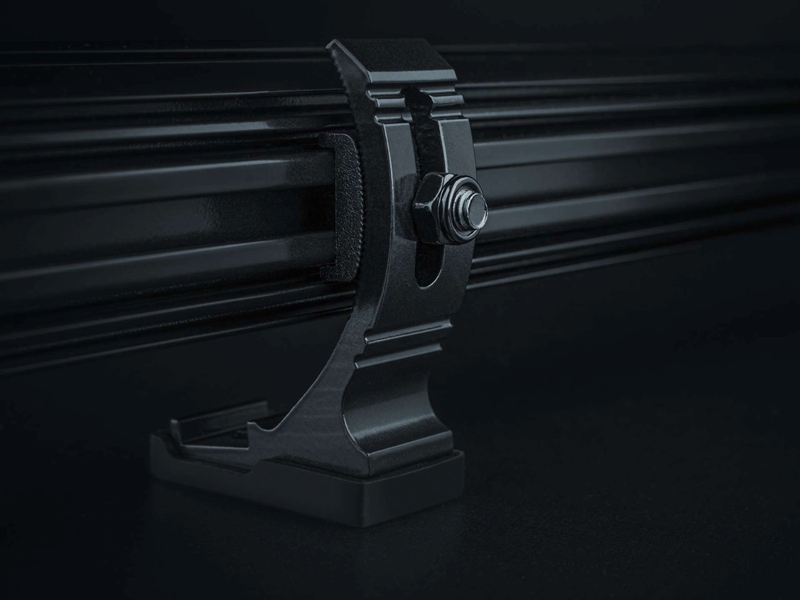

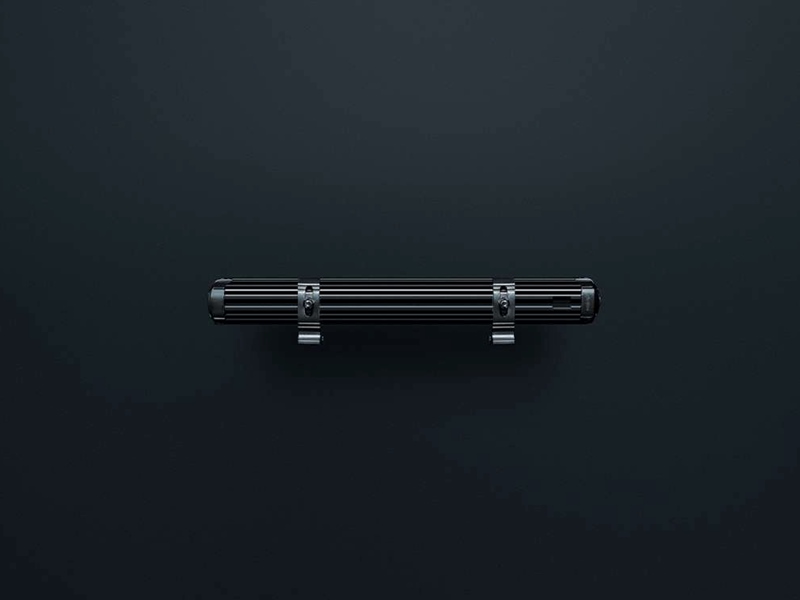

There are brackets included for mounting and also a pre-mounted 4-pin DT plug, which makes the installation much easier.
- Black: Minus / -
- Red: High-beam
- White: White position-light
- Yellow: Yellow position-light
E-approvements: ECE R112, R7, R10, CE
Facts for SR 22" - 59W
| Consumption: | 59W |
| Kelvin: | 6000K |
| LEDs: | 20 |
| Lumen effective: | 4254lm |
| Lumen theoretical: | 8000lm |
| Operating temperature: | – 30°C to +65°C |
| Reference: | 50 |
| Voltage: | 10-40V DC |
Facts for SR 12" - 32W
| Consumption: | 32W |
| Kelvin: | 6000K |
| LEDs: | 10 |
| Lumen effective: | 2200lm |
| Lumen theoretical: | 4000lm |
| Operating temperature: | – 30°C to +65°C |
| Reference: | 30 |
| Voltage: | 10-40V DC |
Strands double-rowed LED light-bar with dual color position-light at the bottom. E-approved for road use.
